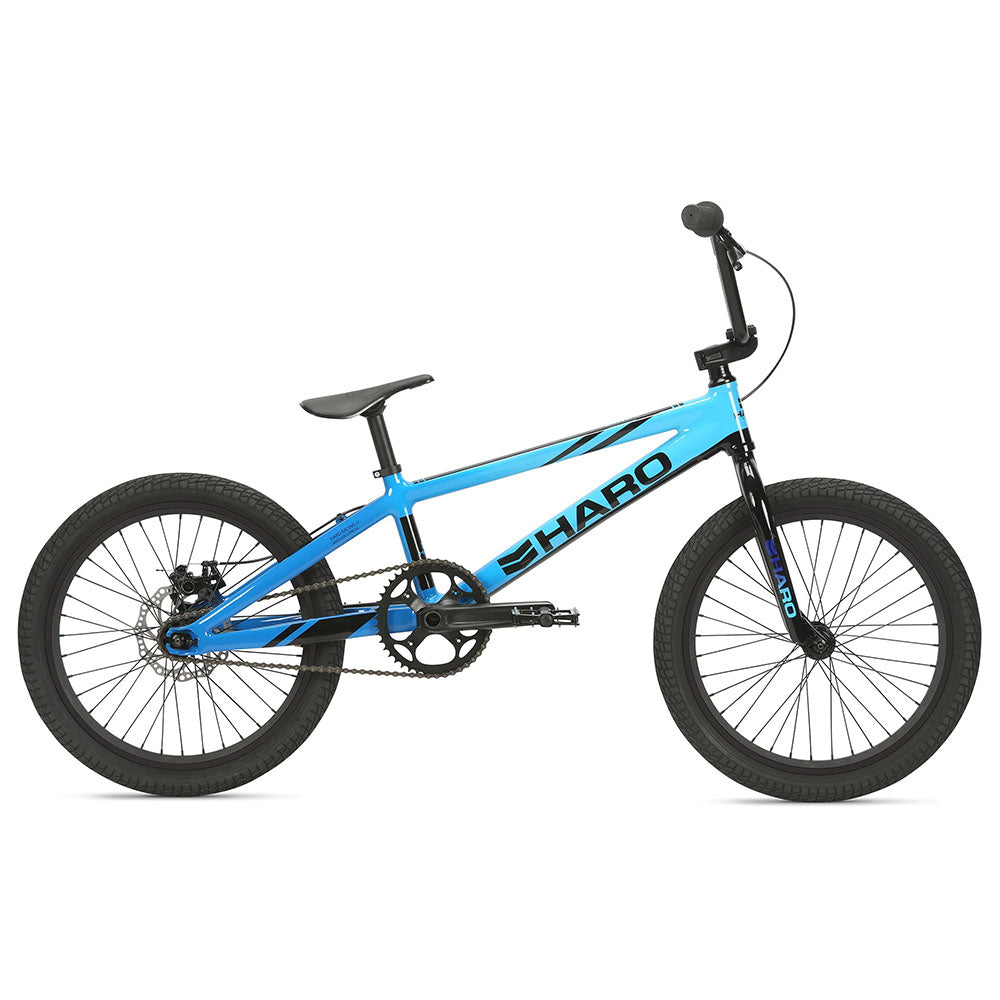

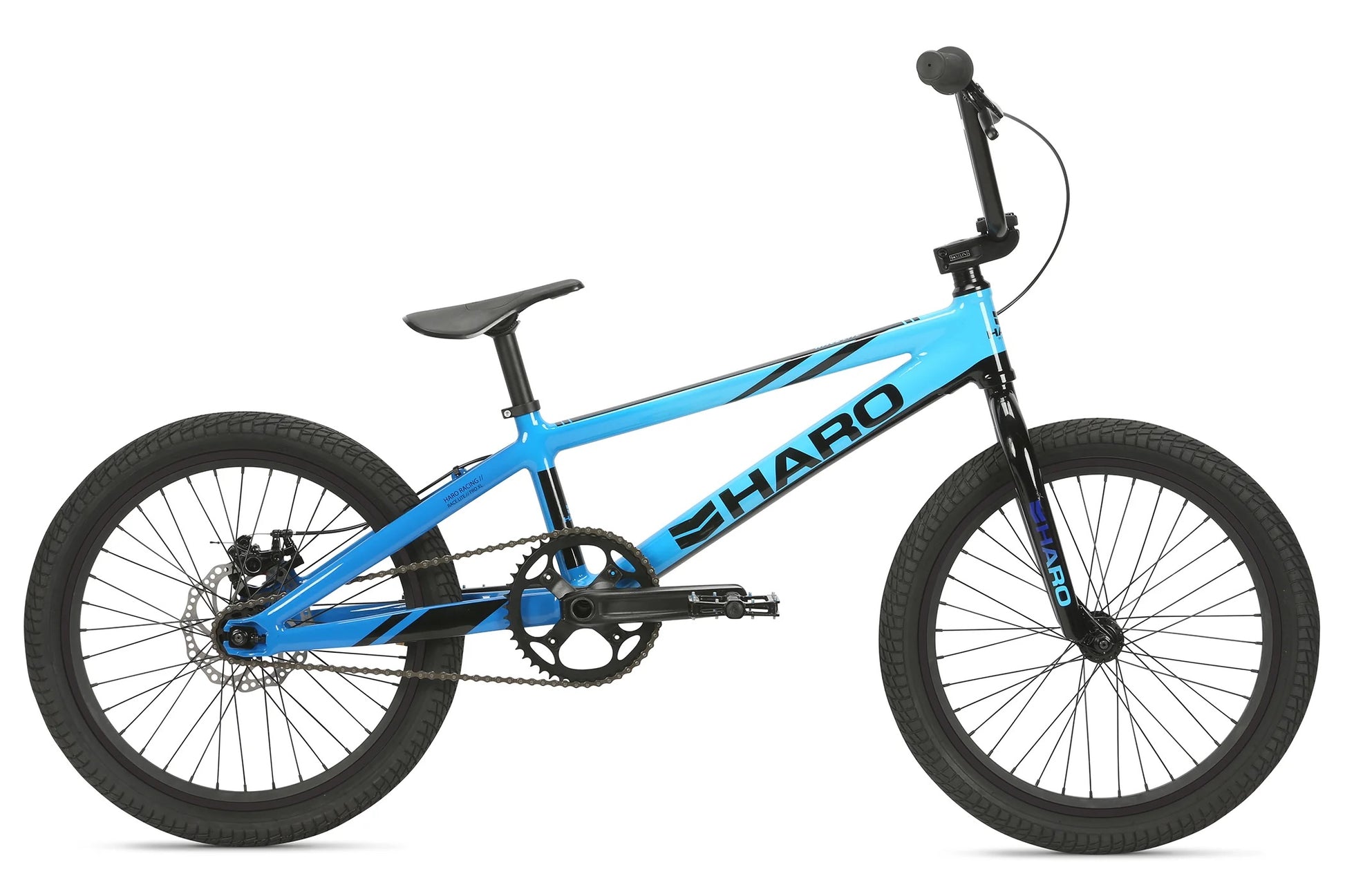

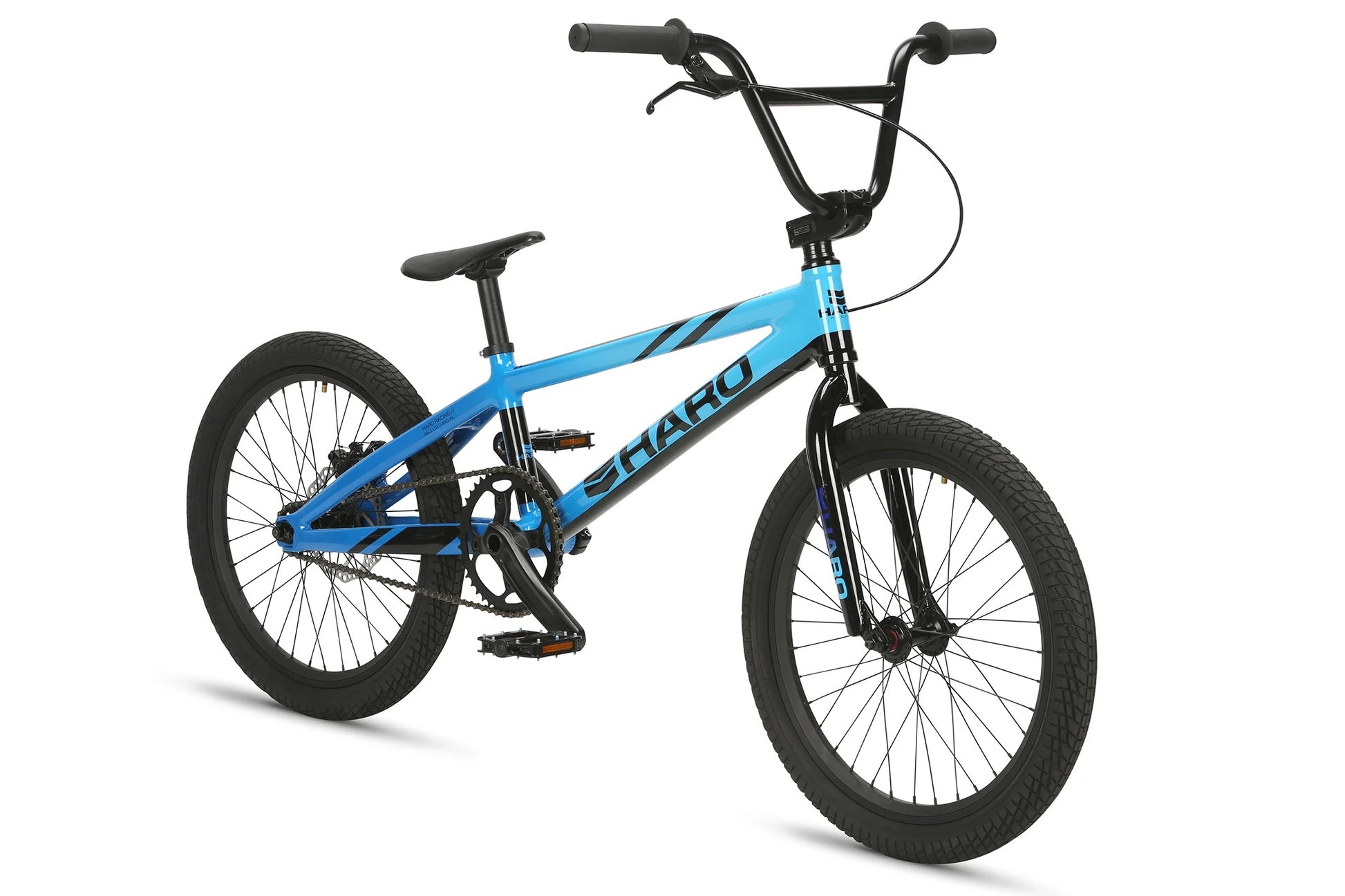

HARO RACE LITE PRO XL
HARO RACE LITE PRO XL
配送可能な他の商品と組み合わせてご購入頂いた場合でも、こちらの商品は店舗受取になります。
注文後、4~7営業日以内に受取準備完了メールをお送り致します。
店舗へのアクセスは こちら をご覧ください。
送料について
送料について
全国一律：1,000円
※ 10,000円以上のご購入で送料無料
※ 店舗受取は送料無料
※メーカー在庫がない場合もございます。ご了承ください。
受取状況を読み込めませんでした
お取り寄せ可能な商品です。
ご購入・在庫の確認に関しましてはお問い合わせください。
The largest size of the 20" wheel models in the Race Lite series is the Pro XL model. The 21" top tube frame accommodates larger racers who need more front end room while the rest of the geometry and frame spec carries forward from the Pro model. Also found on the Pro XL are the same high performance sealed bearing wheel set, 2 piece alloy cranks, PTC with press fit BB86 sealed bearing bottom bracket and fork/bar/stem front end controls as the Pro.
Features
・6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioners. 21" top tube.
・Full chromoly 1 1/8" Threadless Steerer w/tapered legs
・2-pc Forged 170mm alloy w/ 24mm hollow spindle. Sealed BB. 44T chainring.
・20" Alloy 36h, double-wall rims
・36h Alloy sealed bearing hubs w/disc 16T cassette rear
・Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
| FRAMESET | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 21" top tube. |
| Fork | Full chromoly 1 1/8" Threadless Steerer w/tapered legs |
| Colors | Blue |
| DRIVETRAIN | |
| Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle - 175mm - 44t Alloy Chainring |
| Bottom Bracket | Press-Fit BB86, Sealed Bearing |
| Sprocket | 44t Alloy Chainring |
| Gearing | 44/16 |
| Pedals | Alloy DX, 9/16" |
| Chain | KMC Z33 12 X 3/32" |
| Cassette | 16t Cassette |
| WHEELS | |
| Tires | Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear |
| Front Hub | 36h Alloy Sealed-Bearing |
| Rear Hub | Sealed Disc 16T cassette rear |
| Rims | 20" Alloy 36h, Double Wall |
| BRAKING SYSTEM | |

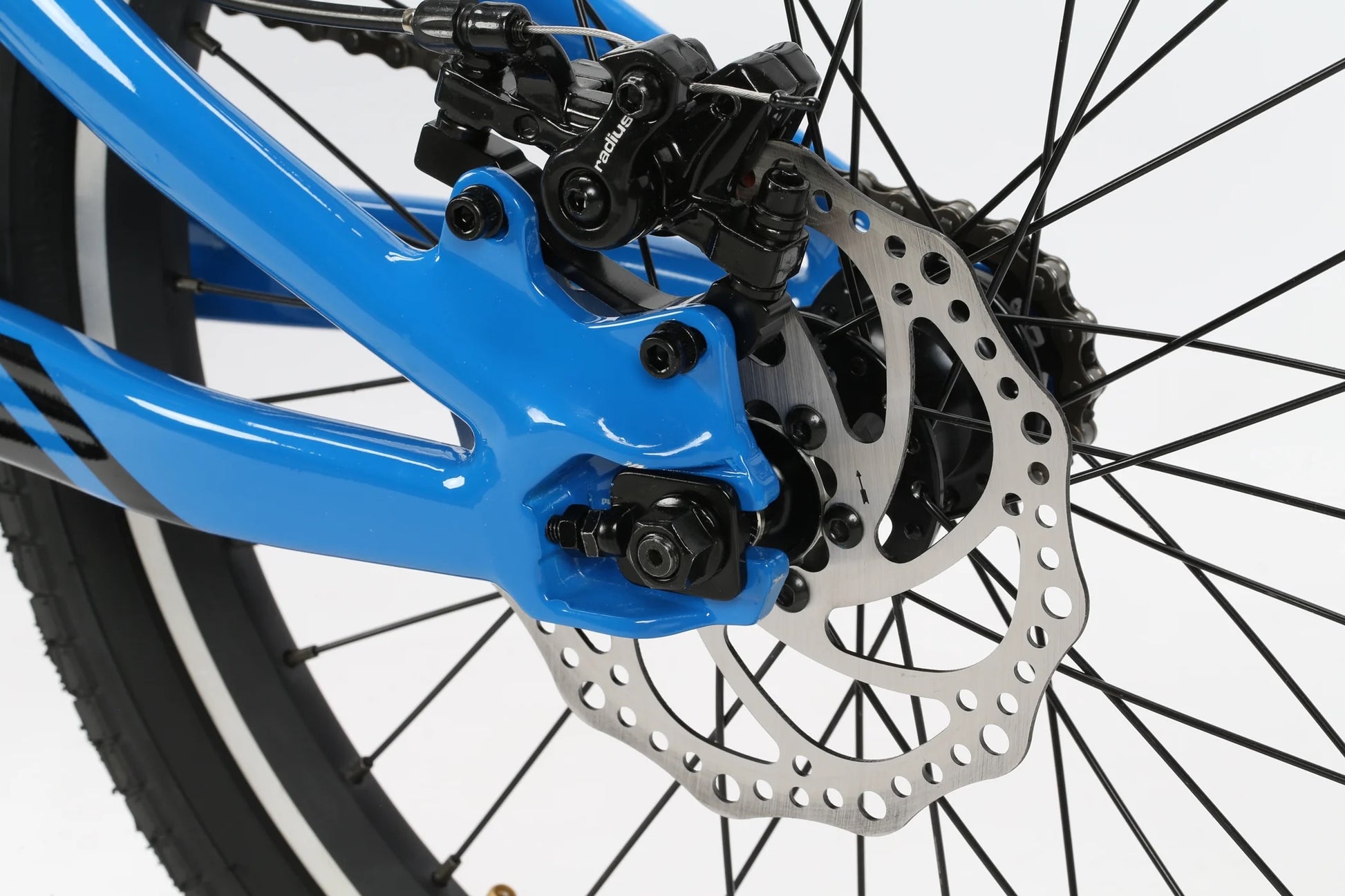

| Brake | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
| Brake Lever | Promax XL-373 Two Finger |
| OTHER COMPONENTS | |
| Grips | Micro-Knurl Grip |

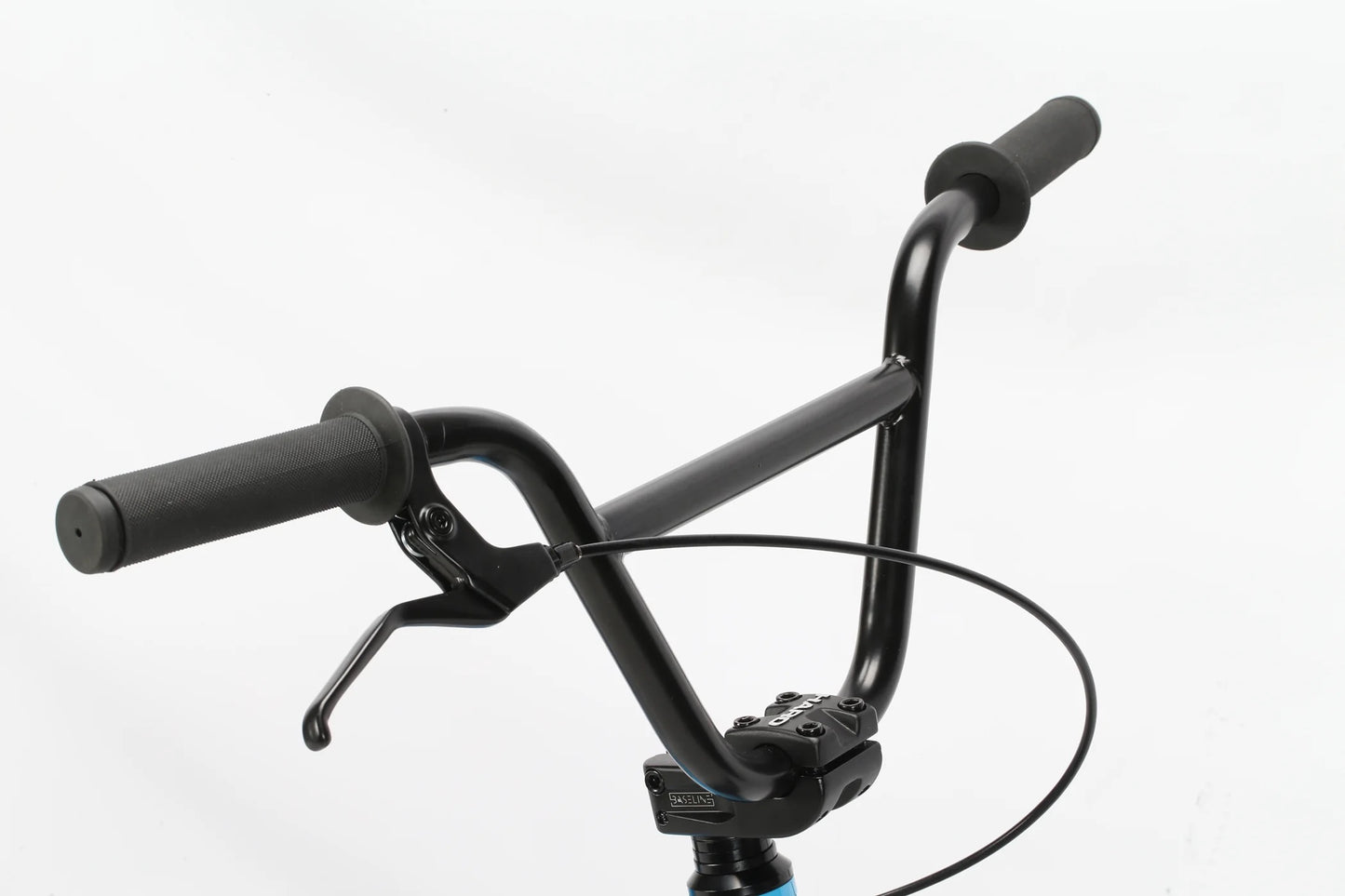

| Handlebar | Haro full chromoly, 8" Rise |

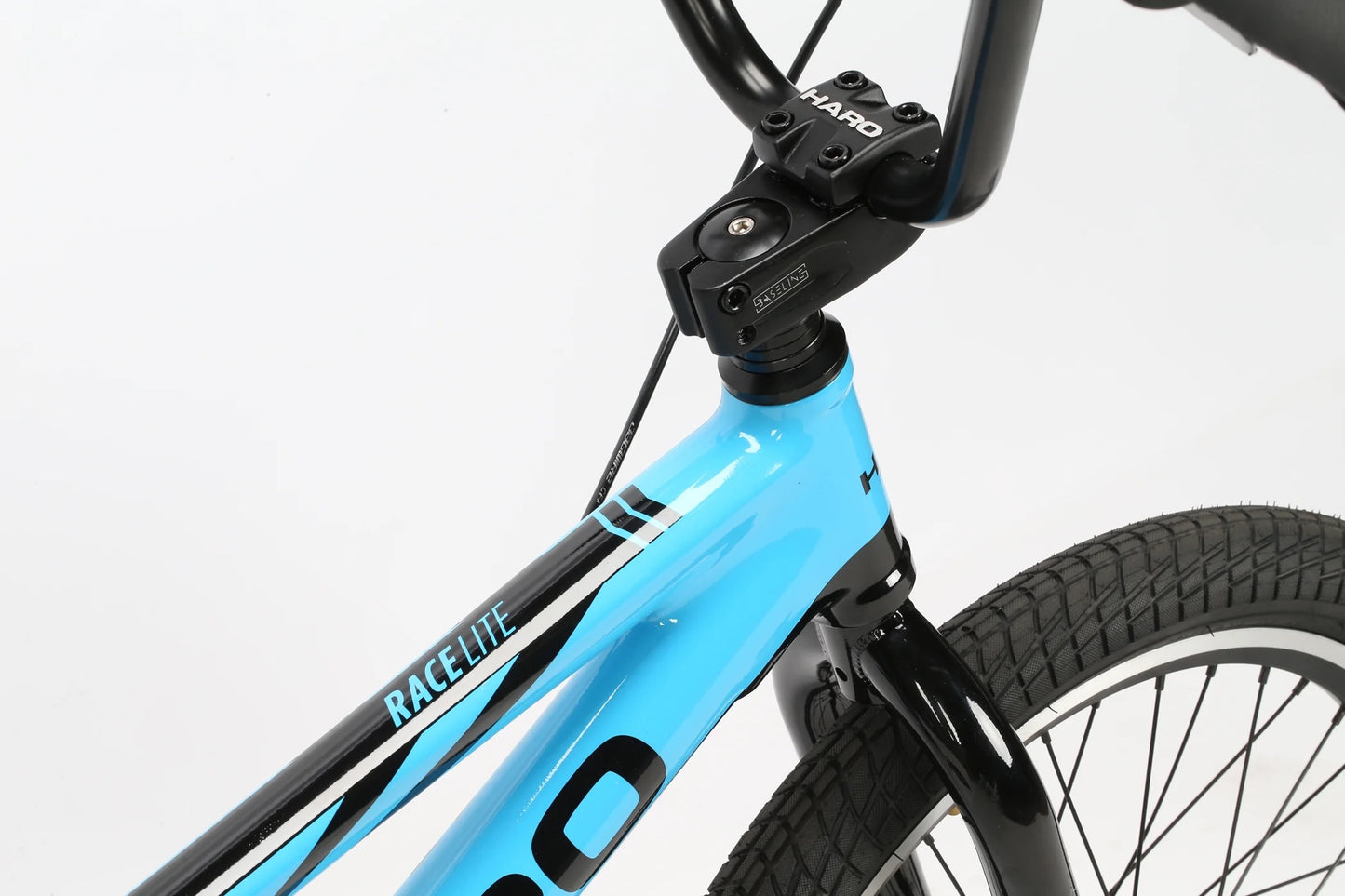

| Stem | Forged Alloy Top-Load, 45mm reach |
| Headset | 1-1/8"" Sealed Threadless |
| Seat | Haro Slim Plastic Pivotal |
| Seat Post | Alloy Pivotal, 27.2mm |
| Seat Post Clamp | Alloy, 31.8mm |

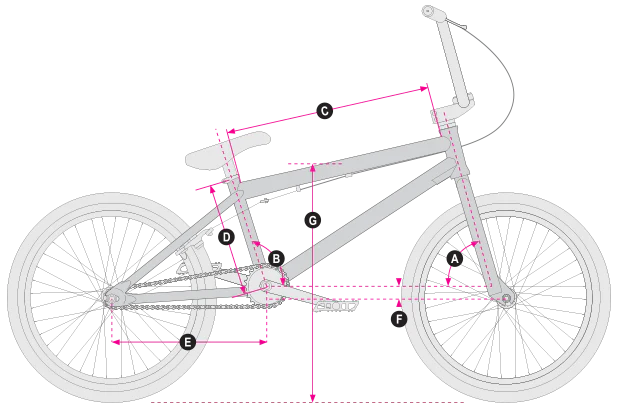

Size 20
A. Head Angle 74°
B. Seat Angle 72°
C. Top Tube 21" (533mm)
D. Seat Tube 9.4" (240mm)
E. Chainstay 15.2" (387mm)
F. BB Height 11.5" (293mm)
G. Stand Over 22.1" (562mm)
