HARO
HARO RACE LITE PRO EXPERT XL
HARO RACE LITE PRO EXPERT XL
配送可能な他の商品と組み合わせてご購入頂いた場合でも、こちらの商品は店舗受取になります。
注文後、4~7営業日以内に受取準備完了メールをお送り致します。
店舗へのアクセスは こちら をご覧ください。
送料について
送料について
全国一律：1,000円
※ 10,000円以上のご購入で送料無料
※ 店舗受取は送料無料
※メーカー在庫がない場合もございます。ご了承ください。
受取状況を読み込めませんでした
お取り寄せ可能な商品です。
ご購入・在庫の確認に関しましてはお問い合わせください。

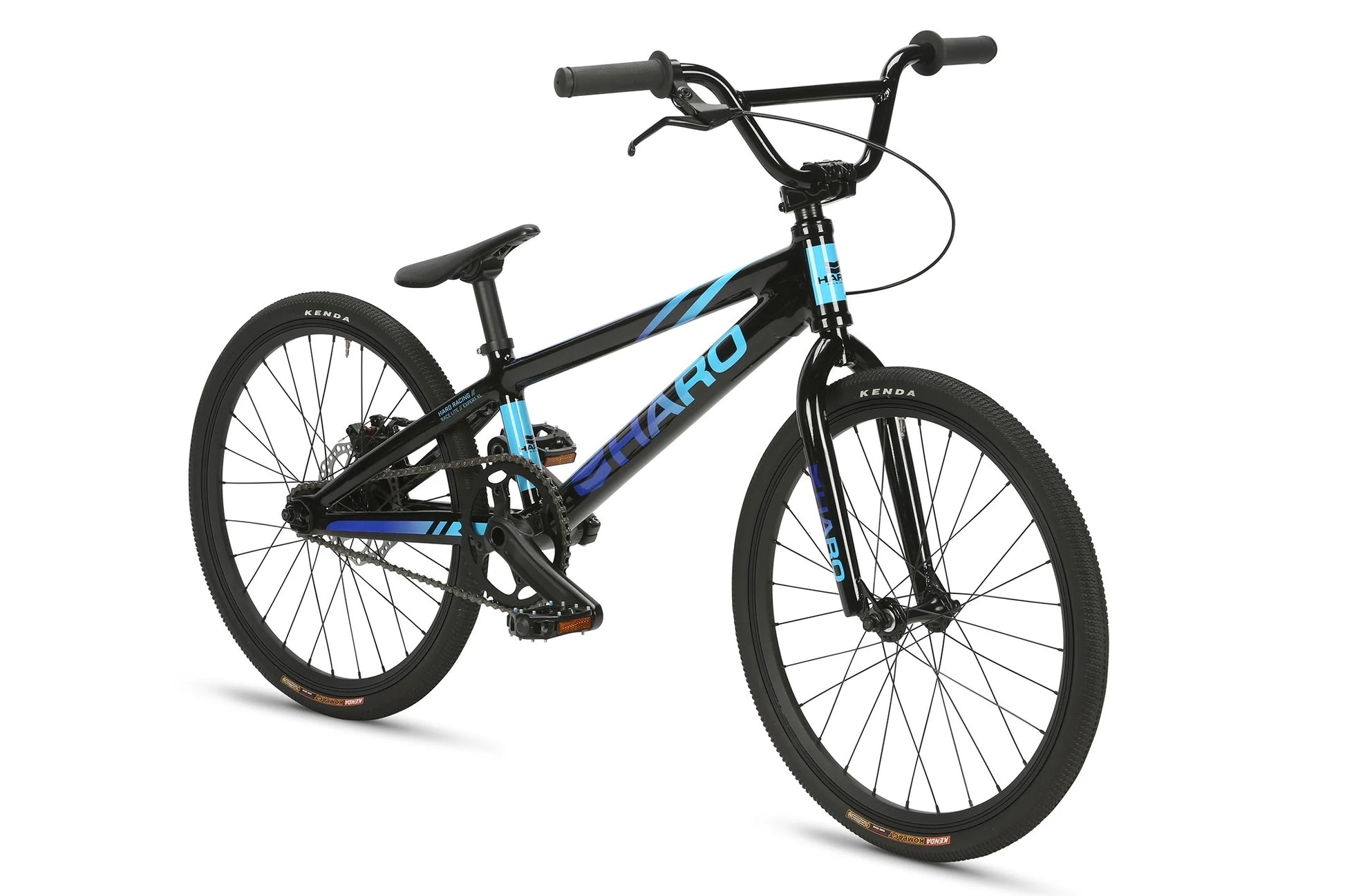

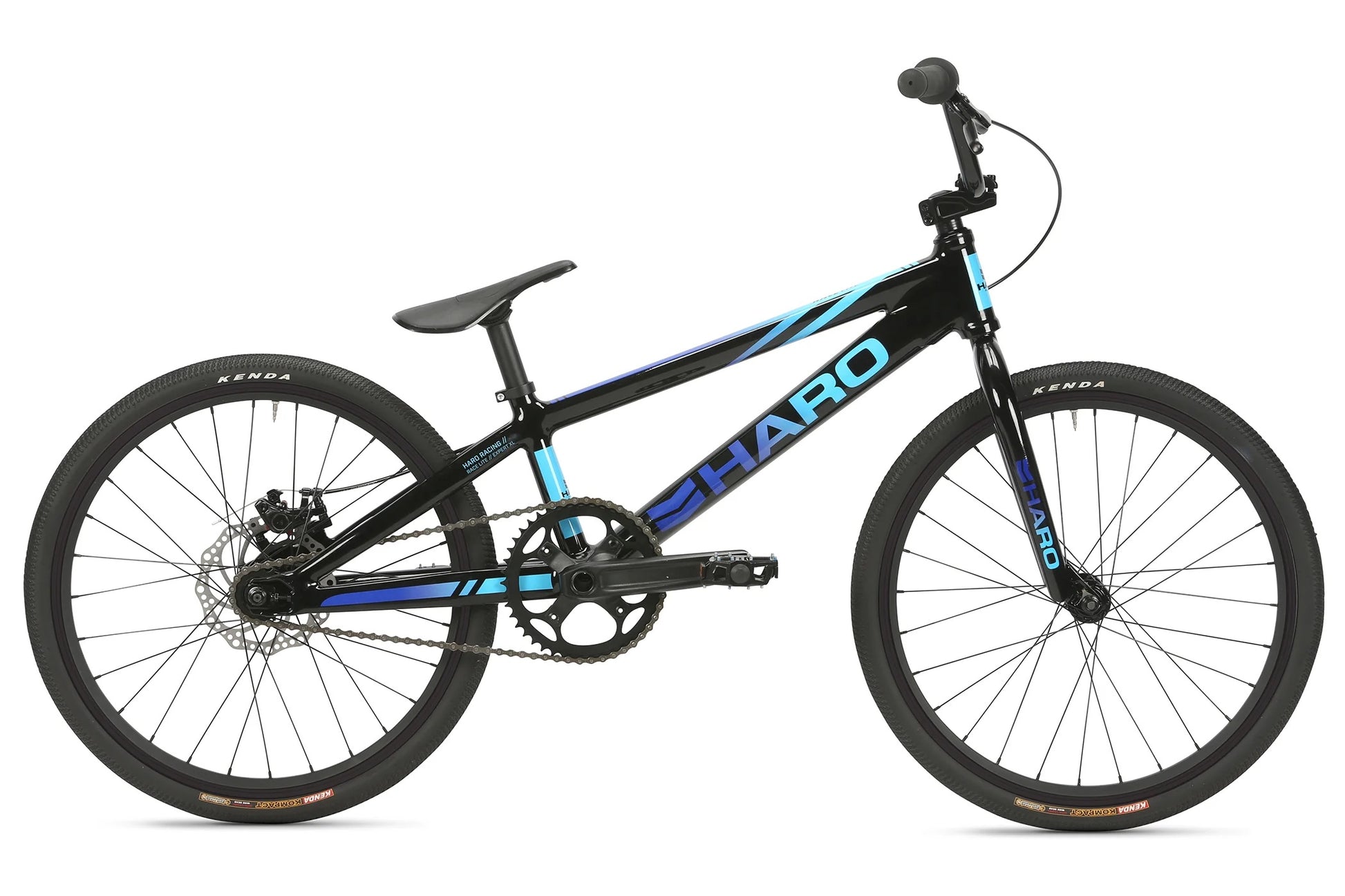

Almost there. Just short of full-sized, the Haro Race Lite Expert XL features a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tires of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tire for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.
Features

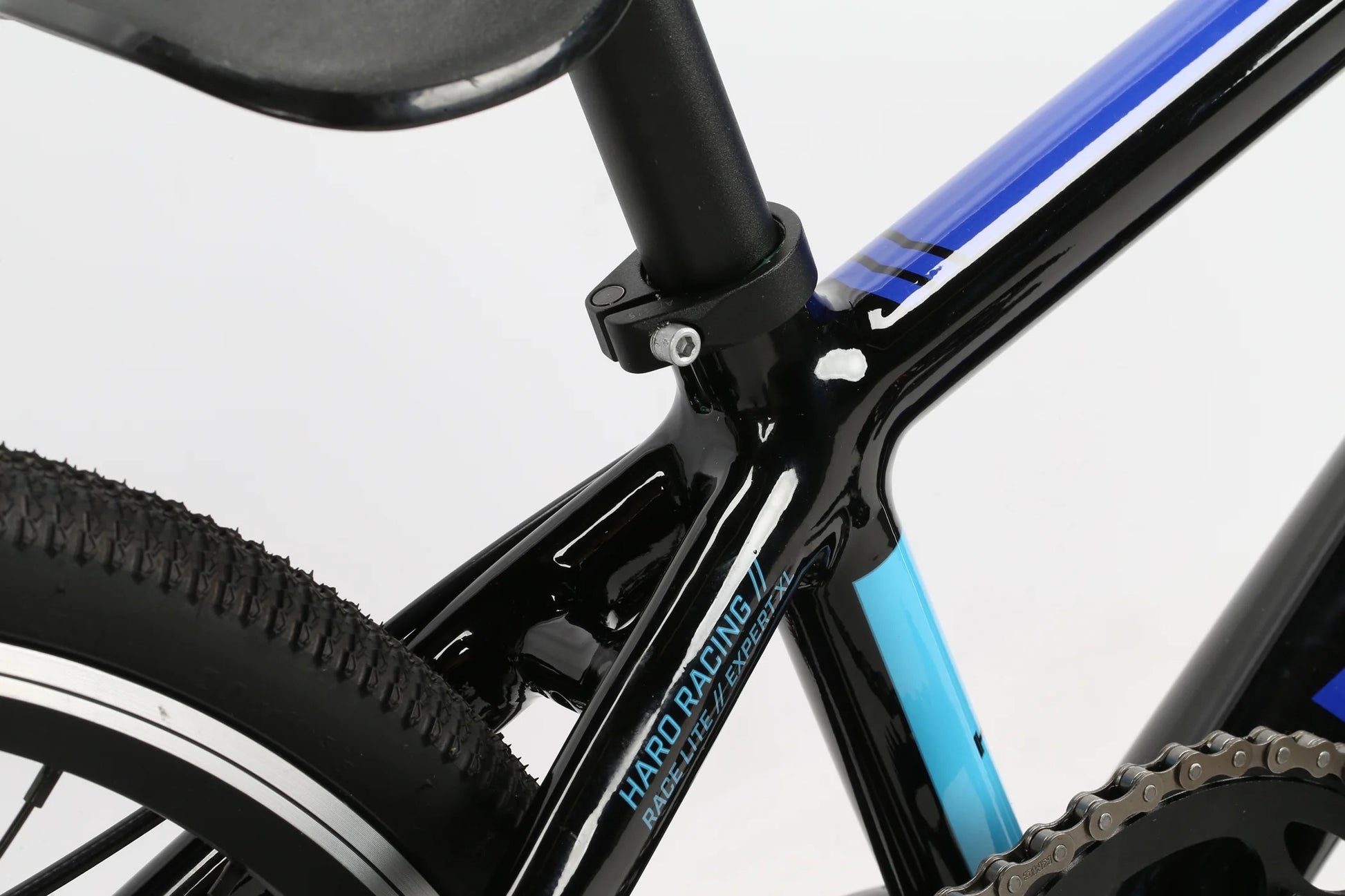

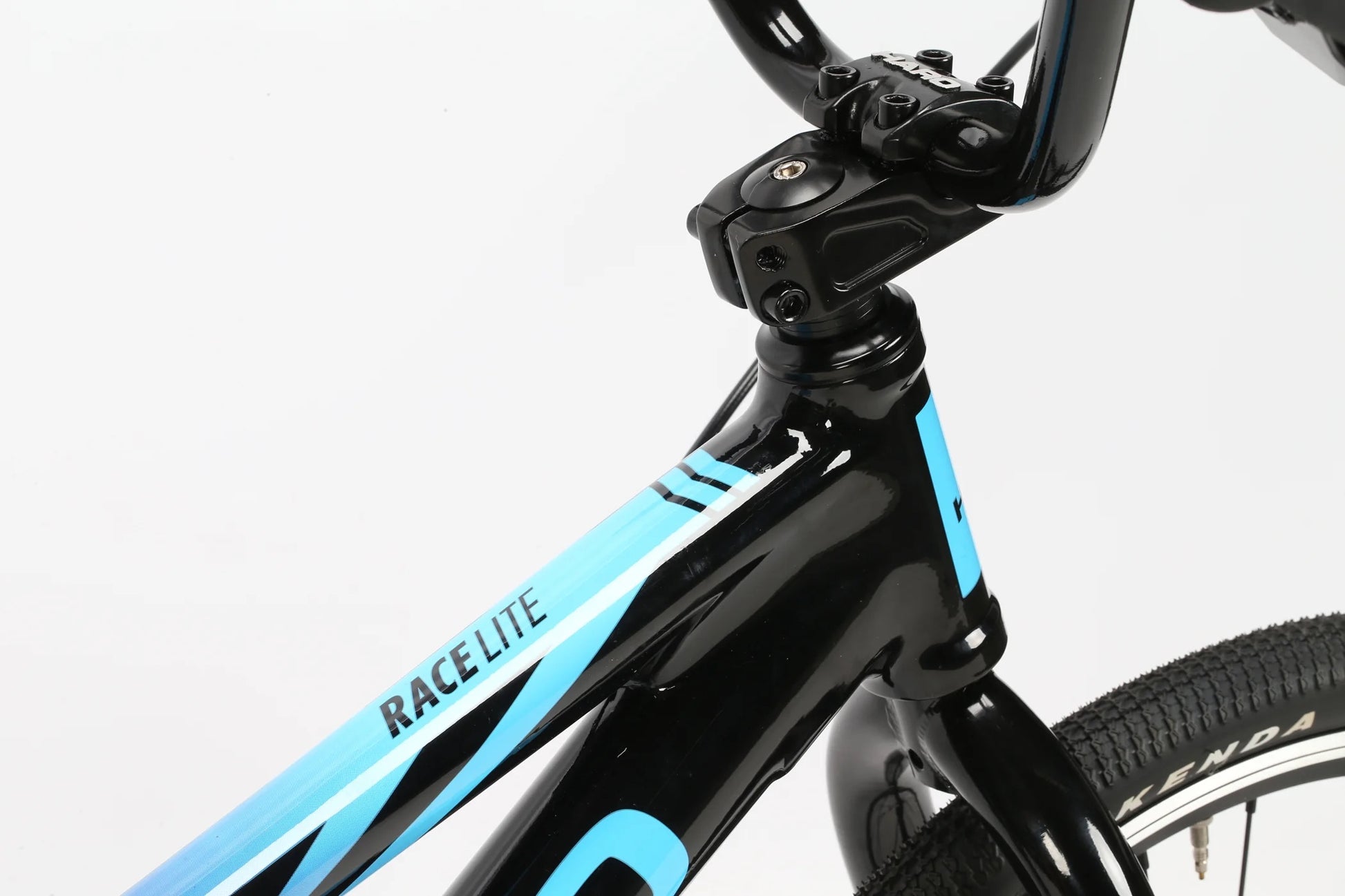

・6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 20" top tube.
・Full chromoly 1" with threadless steerer tube
・2-pc Forged Alloy 165mm crank w/ 24mm hollow spindle. 38T chainring.
・20" Alloy 36h double wall rims
・36h alloy sealed bearing hubs w/disc 15T cassette rear

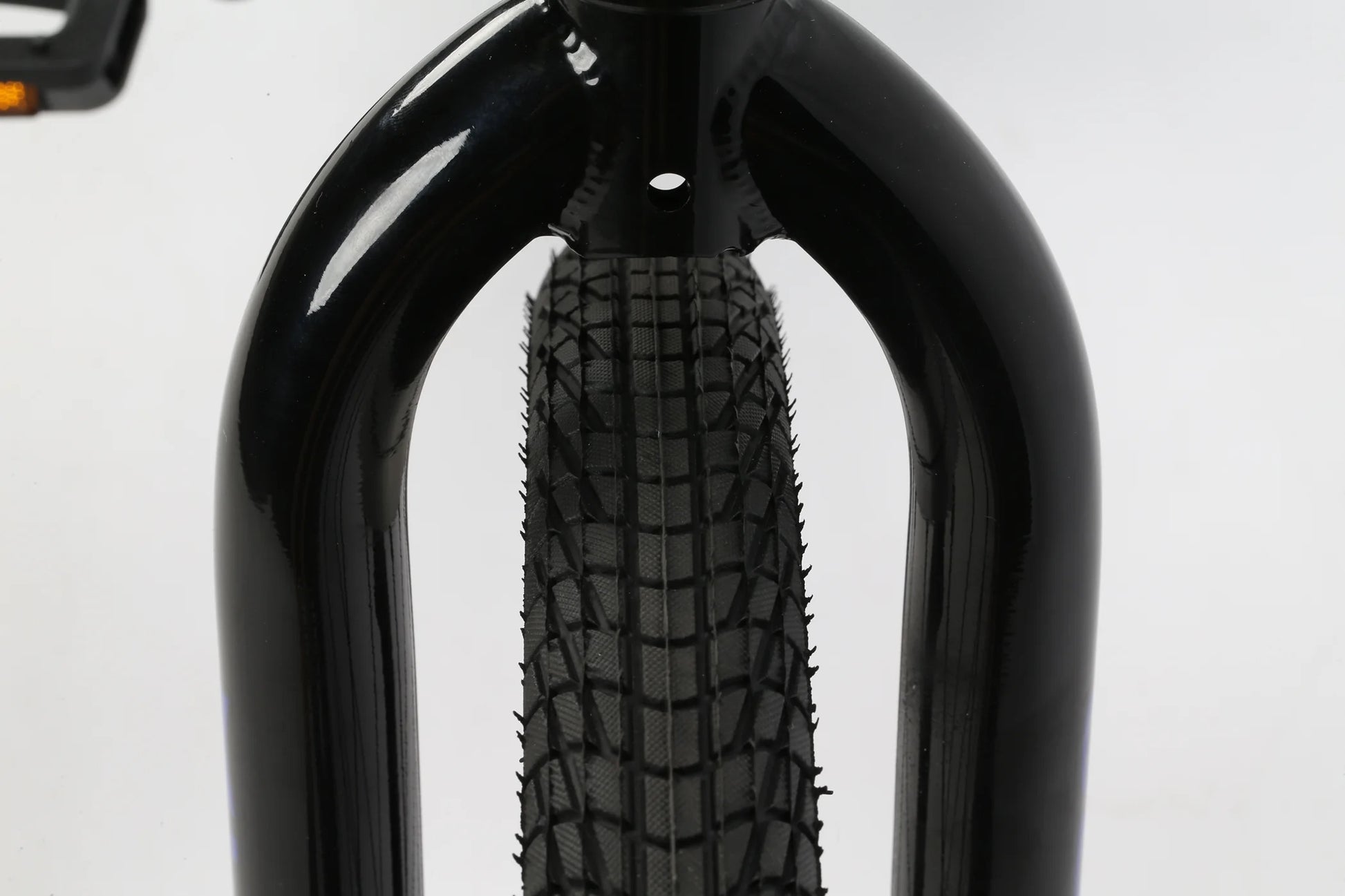

・Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
| FRAMESET | |
|---|---|
| Frame | 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners |
| Fork | Full chromoly 1 1/8" Threadless Steerer w/tapered legs |
| Colors | Black |
| DRIVETRAIN | |
| Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm |
| Bottom Bracket | Press-Fit BB86, Sealed Bearing |
| Sprocket | 38t Alloy Chainring |
| Gearing | 38/15 |
| Pedals | Alloy DX, 9/16" |
| Chain | KMC Z33 1/2 X 3/32" |
| Cassette | 15t Cassette |
| WHEELS | |
| Tires | Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear |
| Front Hub | 36h Alloy Sealed-Bearing |
| Rear Hub | 36h Alloy Sealed-Bearing w/ Disc Cassette Rear |
| Rims | 20" Alloy 36h, Double Wall |
| BRAKING SYSTEM | |
| Brake | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
| Brake Lever | Promax XL-373 Two Finger |
| OTHER COMPONENTS | |
| Grips | Micro-Knurl Grip |
| Handlebar | Haro Mini Alloy Bar, 6.5" Rise |
| Stem | Forged Alloy Top-Load, 45mm Ext. |
| Headset | 1-1/8" Sealed Threadless |
| Seat | Haro Slim Plastic Pivotal |
| Seat Post | Alloy Pivotal, 27.2mm |
| Seat Post Clamp | Alloy, 31.8mm |

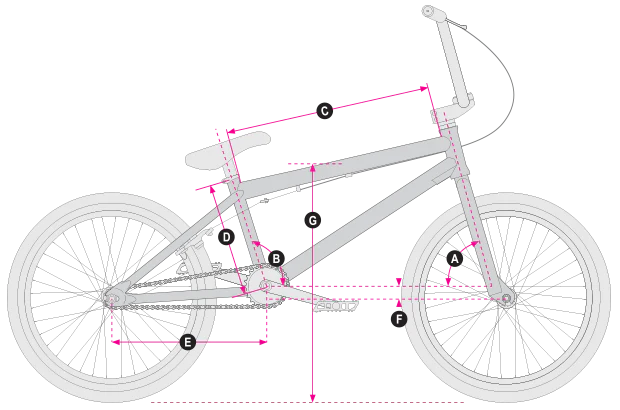

Size 20
A. Head Angle 73°
B. Seat Angle 70°
C. Top Tube 20" (507mm)
D. Seat Tube 8.8" (224mm)
E. Chainstay 13.9" (352mm)
F. BB Height 11" (280mm)
G. Stand Over 19.5 (495.3mm)
