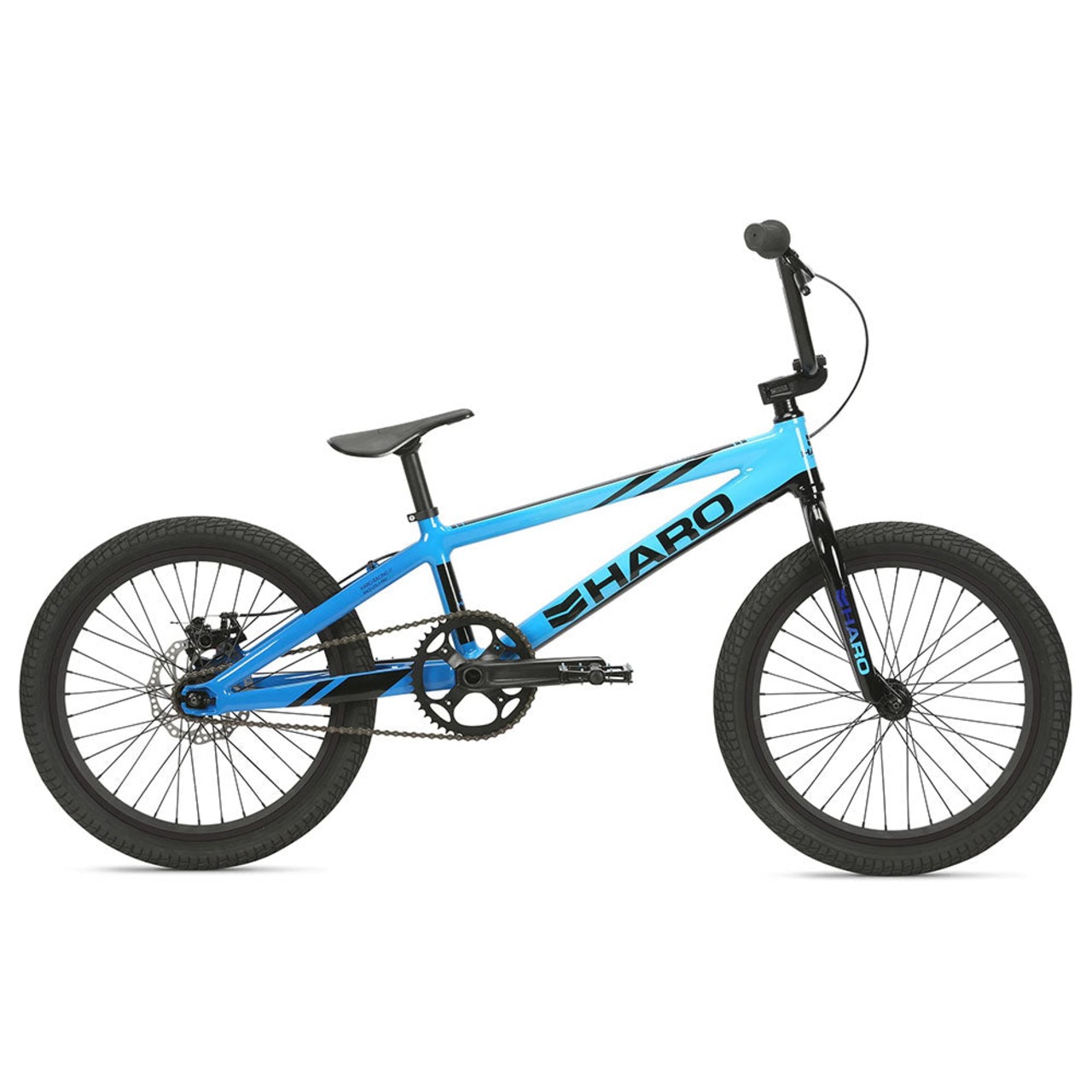

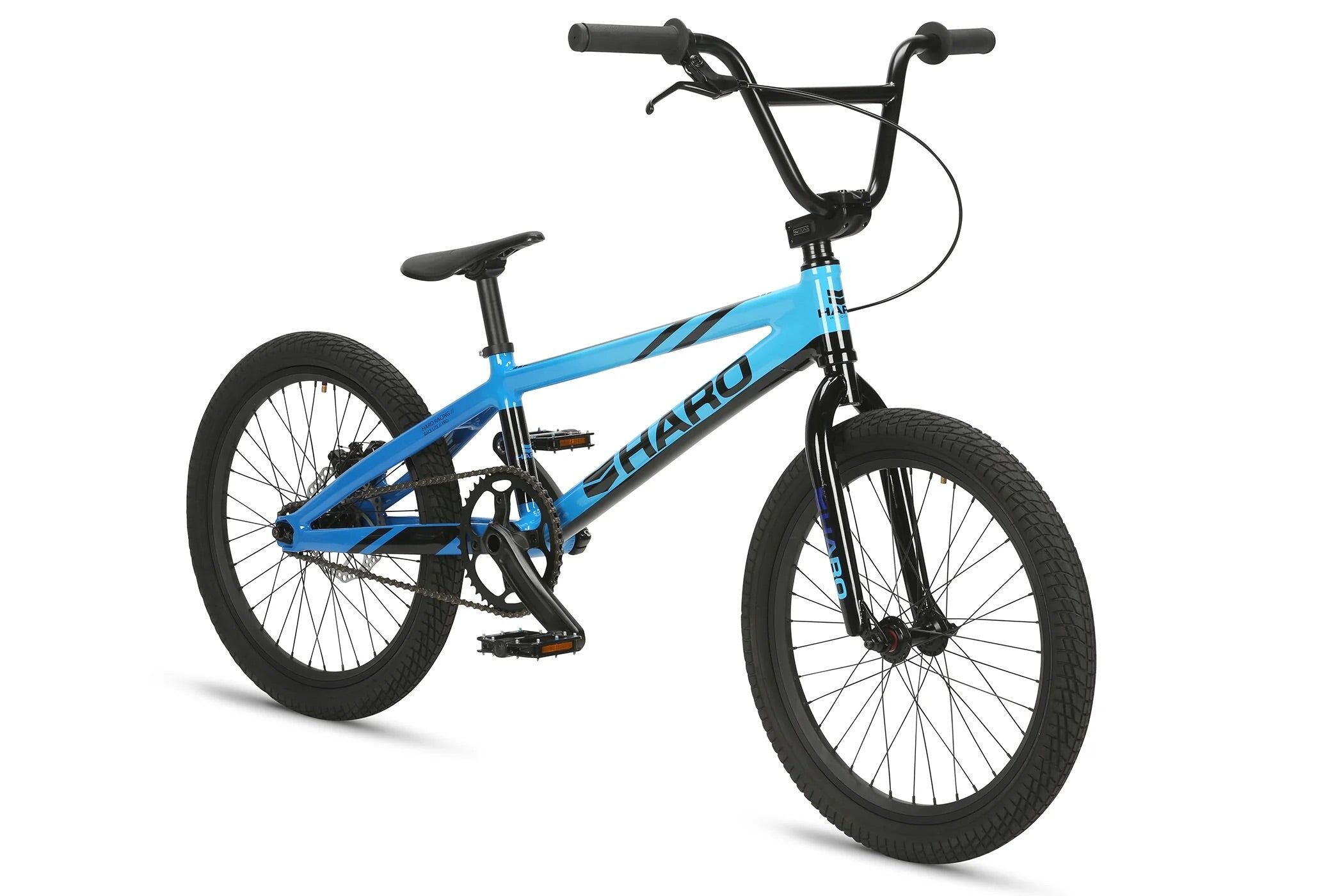

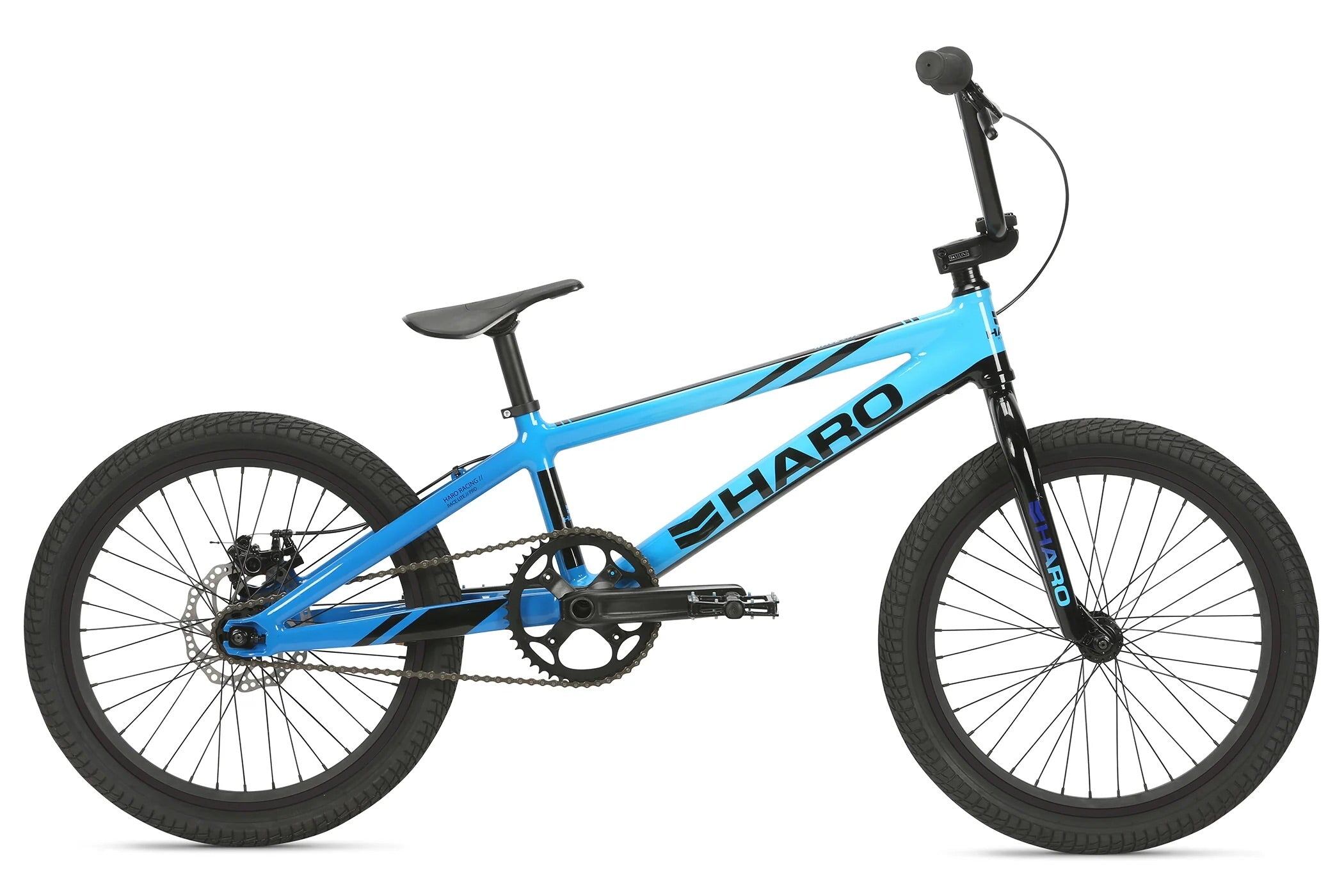

HARO RACELITE PRO
¥85,800
SOLD OUT
お取り寄せ可能な商品です。
ご購入・在庫の確認に関しましてはお問い合わせください。
?
?
The Race Lite Pro model shares many of the same key components and spec as the Expert XL model but have been sized up slightly. 20.75" top tube frame, 175mm cranks, 8" rise bars and wider rims/tires all contribute to making this platform fit the needs of racers who have grown beyond the Expert XL size.
?
Features
・6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
・Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
・2-pc Forged Alloy w/ 24mm Hollow Spindle
・20" Alloy 36h, Double Wall
・36h Alloy Sealed-Bearing w/Disc 16T Cassette Rear
・Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
?
?
FRAMESET
Frame
6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 20.75" top tube.
Fork
Full chromoly 1 1/8" Threadless Steerer w/tapered legs
Colors
Blue
DRIVETRAIN
Cranks
2-pc Forged Alloy w/ 24mm Hollow Spindle - 170mm - 44t Alloy Chainring
Bottom Bracket
Press-Fit BB86, Sealed Bearing
Sprocket
44t Alloy Chainring
Gearing
44/16
Pedals
Alloy DX, 9/16"
Chain
KMC Z33 1/2 X 3/32"
Cassette
16t Cassette
WHEELS
Tires
Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
Front Hub
36h Alloy Sealed-Bearing
Rear Hub
36h sealed disc 16T cassette rear
Rims
24" Alloy 36h, Double Wall
BRAKING SYSTEM
Brake
Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake Lever
Promax XL-373 Two Finger
OTHER COMPONENTS
Grips
Micro-Knurl Grip
Handlebar
Haro full chromoly, 8" Rise
Stem
Forged Alloy Top-Load, 45mm reach
Headset
1-1/8"" Sealed Threadless
Seat
Haro Slim Plastic Pivotal
Seat Post
Alloy Pivotal, 27.2mm
Seat Post Clamp
Alloy, 31.8mm
?

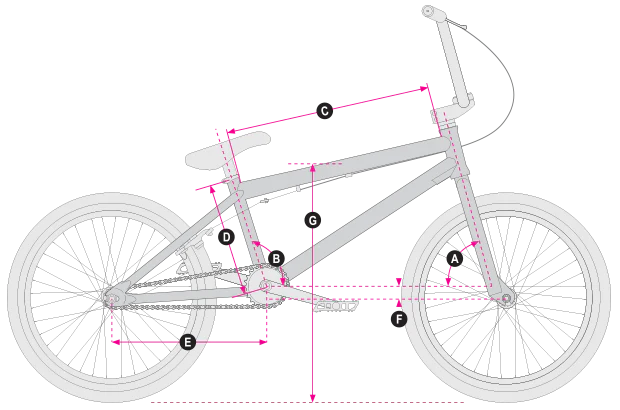

Size 20
A. Head Angle 74°
B. Seat Angle 72°
C. Top Tube 20.75 (527mm)
D. Seat Tube 9.4" (240mm)
E. Chainstay 14.3" (364mm)
F. BB Height 11.5" (293mm)
G. Stand Over 22.1" (562mm)
