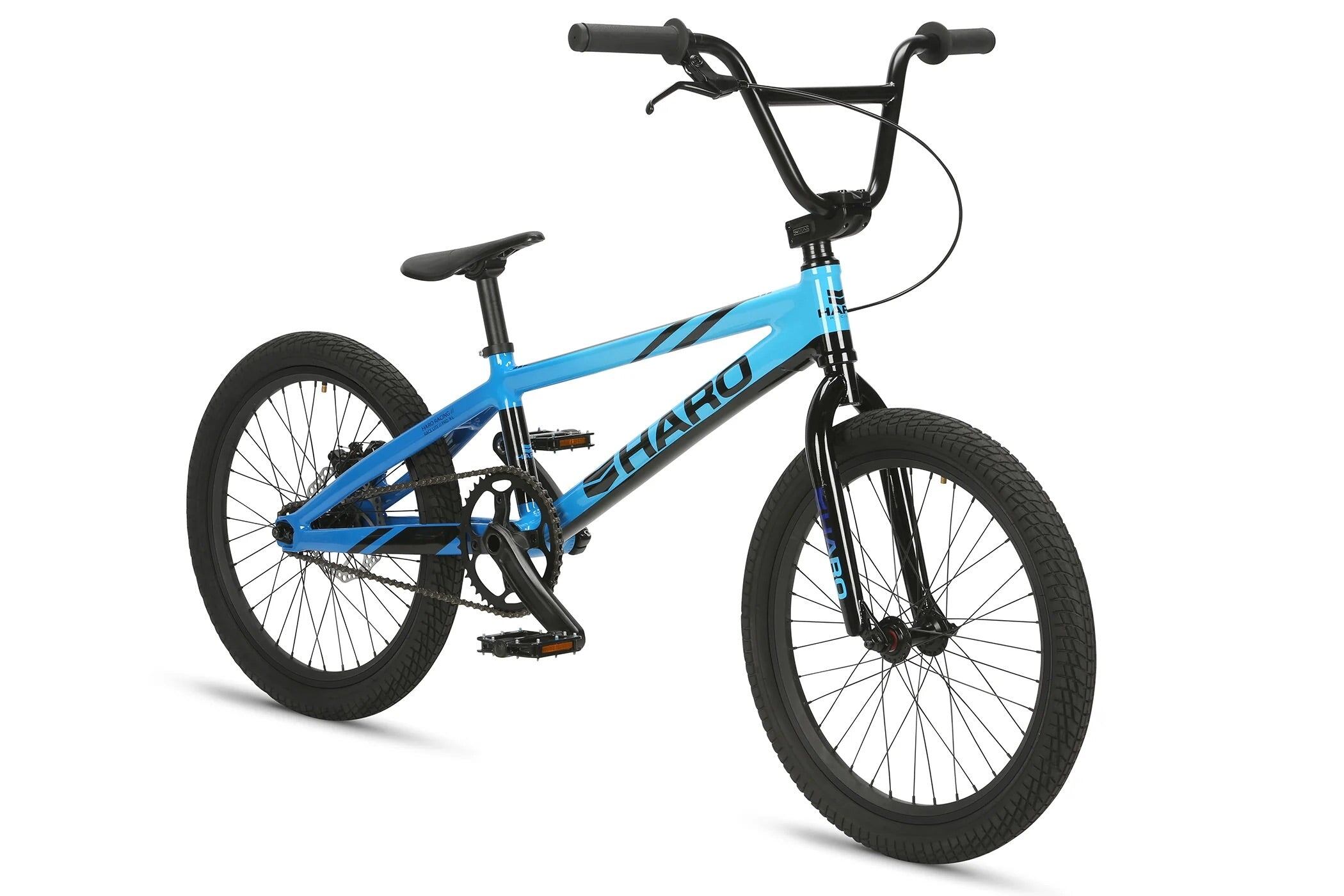

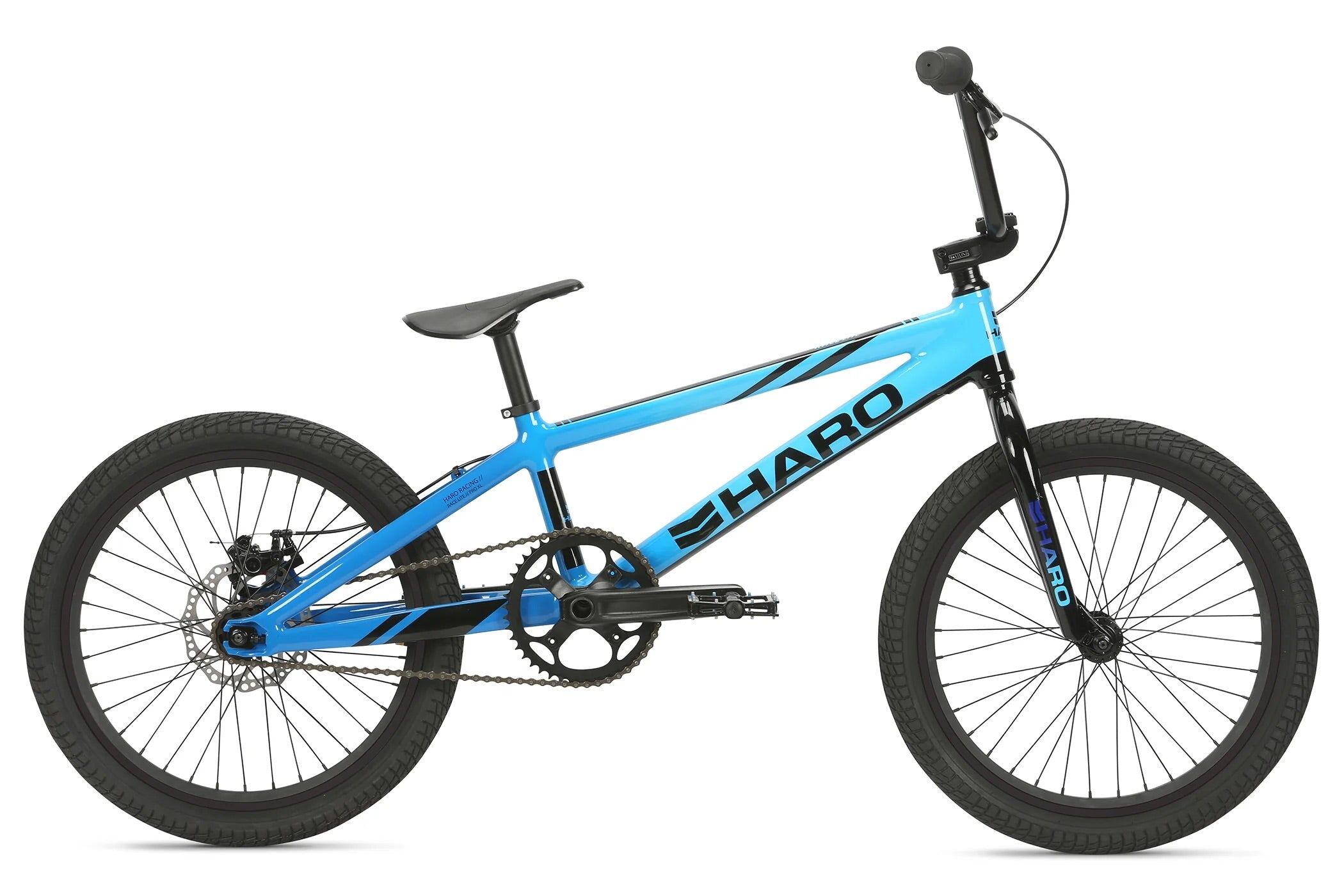

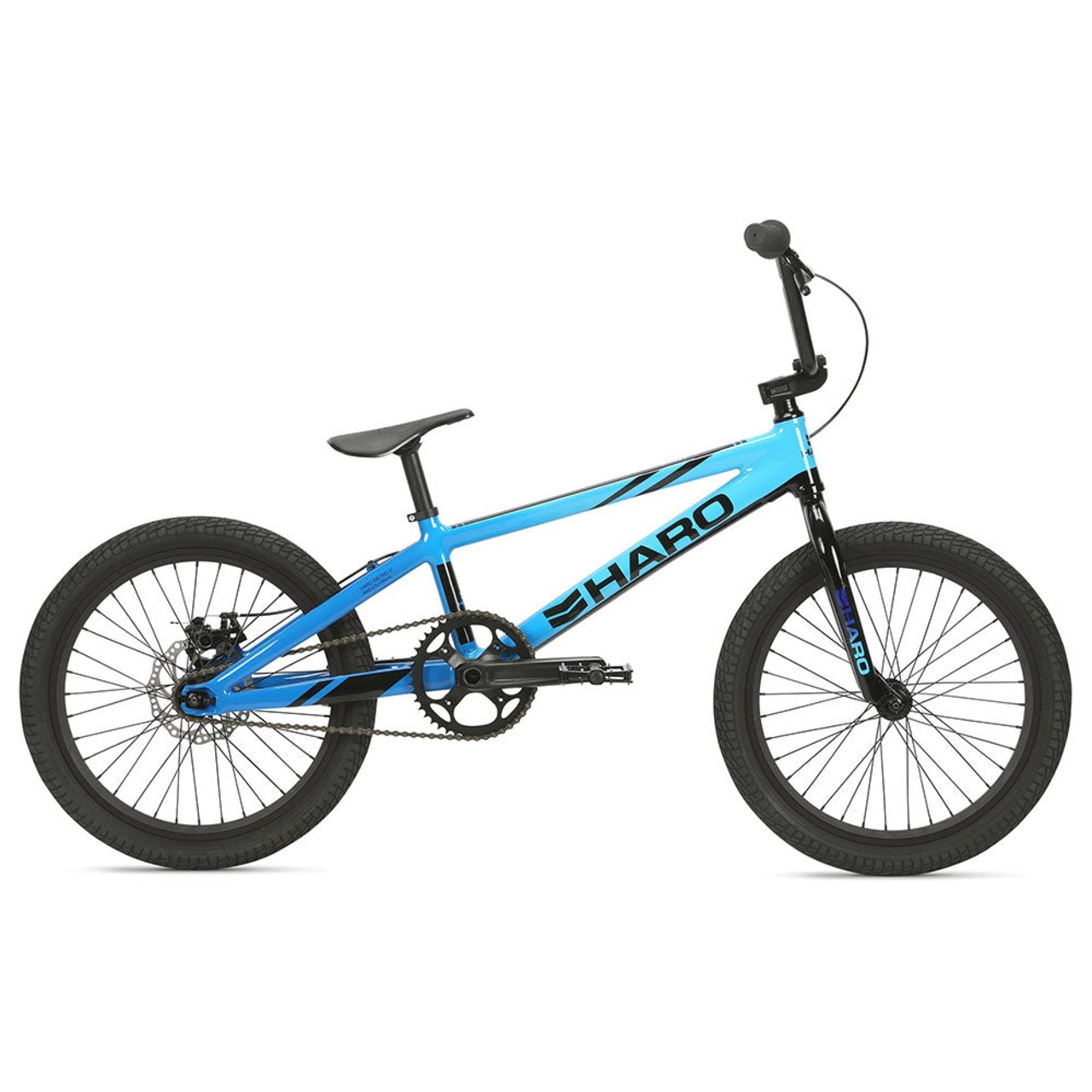

HARO RACE LITE PRO XL
¥85,800
SOLD OUT
お取り寄せ可能な商品です。
ご購入・在庫の確認に関しましてはお問い合わせください。
?
?
The largest size of the 20" wheel models in the Race Lite series is the Pro XL model. The 21" top tube frame accommodates larger racers who need more front end room while the rest of the geometry and frame spec carries forward from the Pro model. Also found on the Pro XL are the same high performance sealed bearing wheel set, 2 piece alloy cranks, PTC with press fit BB86 sealed bearing bottom bracket and fork/bar/stem front end controls as the Pro.
?
Features
・6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioners. 21" top tube.
・Full chromoly 1 1/8" Threadless Steerer w/tapered legs
・2-pc Forged 170mm alloy w/ 24mm hollow spindle. Sealed BB. 44T chainring.
・20" Alloy 36h, double-wall rims
・36h Alloy sealed bearing hubs w/disc 16T cassette rear
・Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
?
?
FRAMESET
Frame
6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 21" top tube.
Fork
Full chromoly 1 1/8" Threadless Steerer w/tapered legs
Colors
Blue
DRIVETRAIN

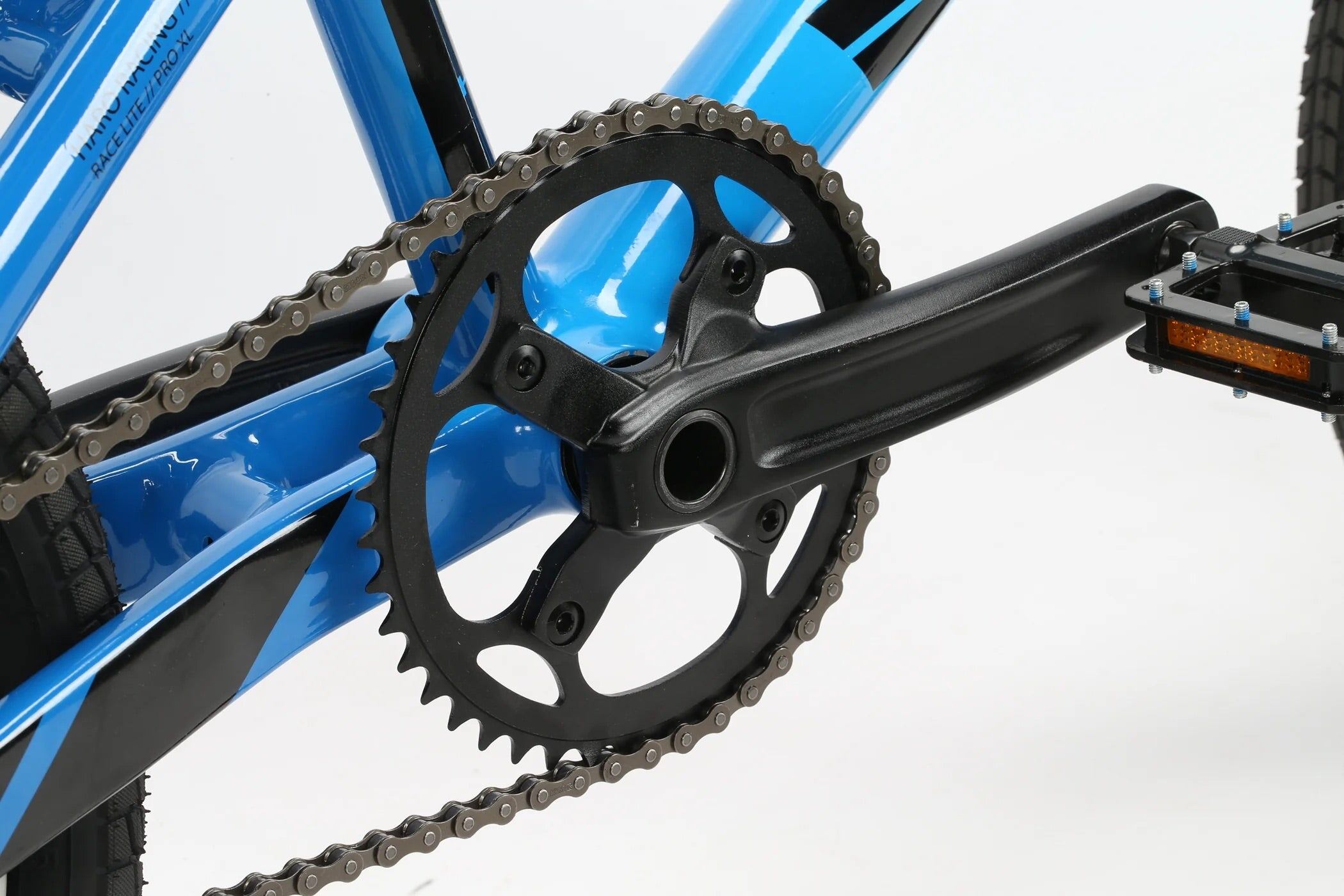

Cranks
2-pc Forged Alloy w/ 24mm Hollow Spindle - 175mm - 44t Alloy Chainring
Bottom Bracket
Press-Fit BB86, Sealed Bearing
Sprocket
44t Alloy Chainring
Gearing
44/16
Pedals
Alloy DX, 9/16"
Chain
KMC Z33 12 X 3/32"
Cassette
16t Cassette
WHEELS
Tires
Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
Front Hub
36h Alloy Sealed-Bearing
Rear Hub
Sealed Disc 16T cassette rear
Rims
20" Alloy 36h, Double Wall
BRAKING SYSTEM
Brake
Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake Lever
Promax XL-373 Two Finger
OTHER COMPONENTS
Grips
Micro-Knurl Grip

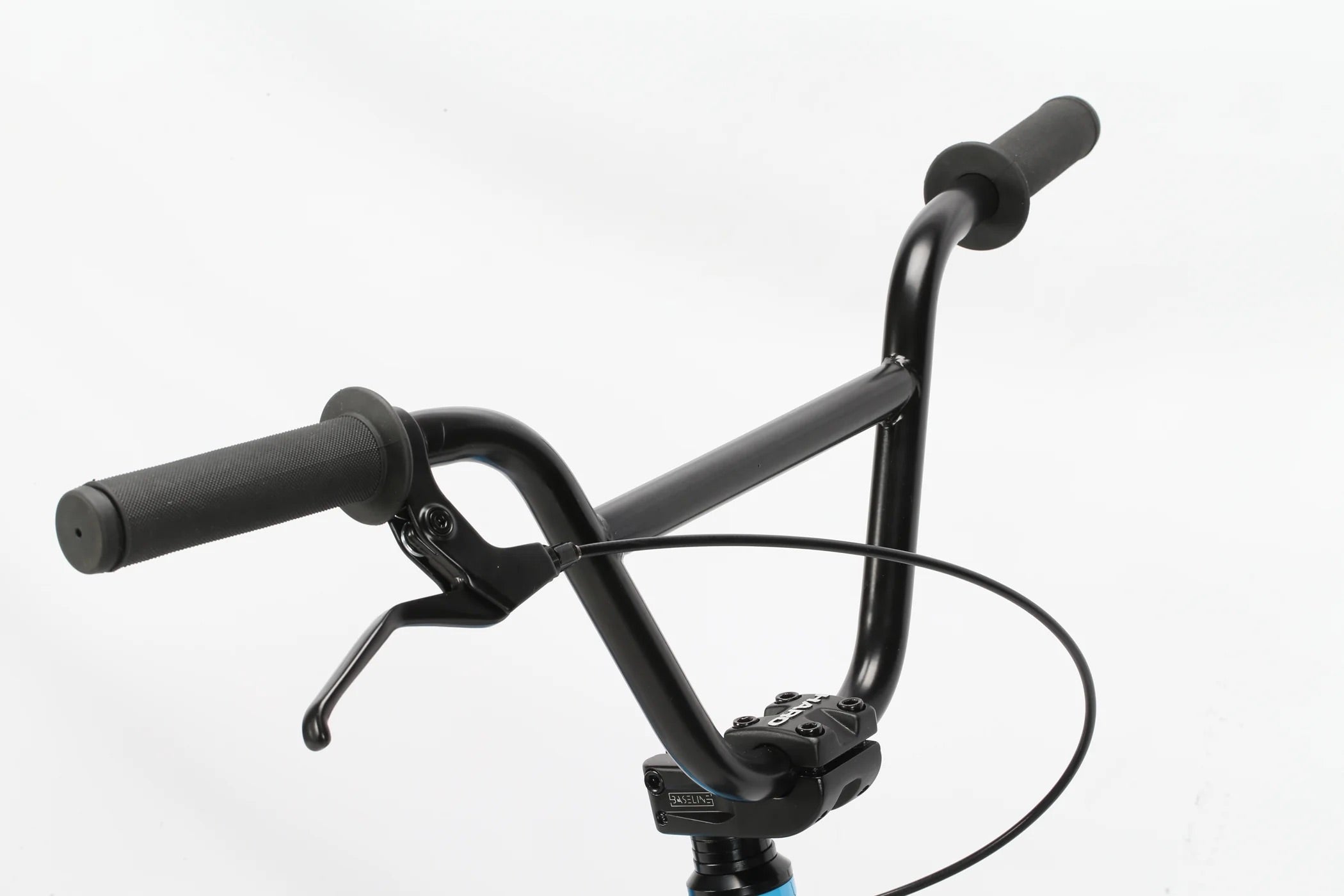

Handlebar
Haro full chromoly, 8" Rise

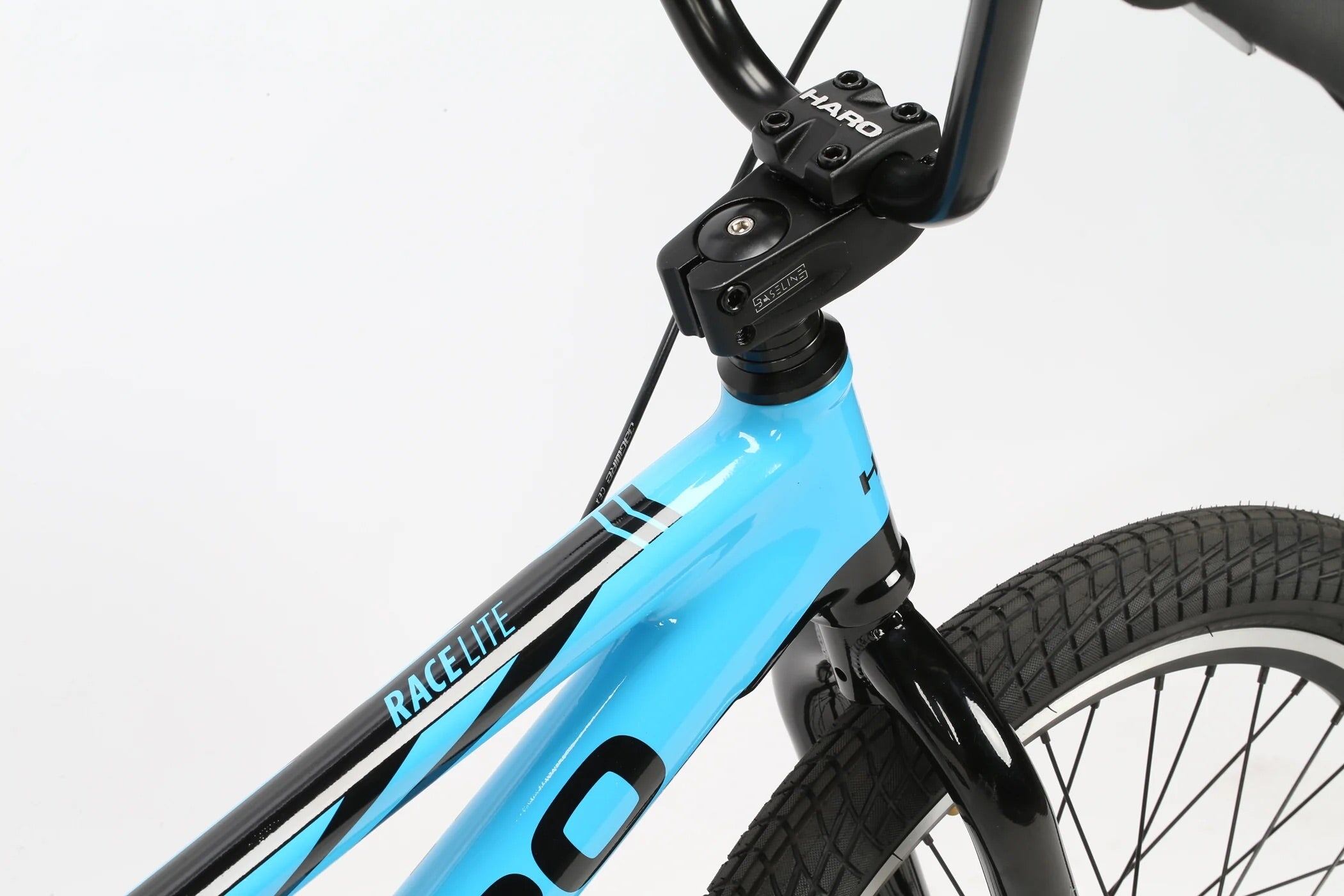

Stem
Forged Alloy Top-Load, 45mm reach
Headset
1-1/8"" Sealed Threadless
Seat
Haro Slim Plastic Pivotal
Seat Post
Alloy Pivotal, 27.2mm
Seat Post Clamp
Alloy, 31.8mm
?
?
?

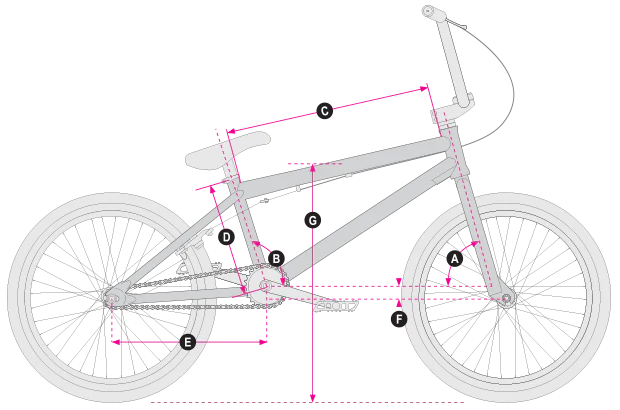

Size 20
A. Head Angle 74°
B. Seat Angle 72°
C. Top Tube 21" (533mm)
D. Seat Tube 9.4" (240mm)
E. Chainstay 15.2" (387mm)
F. BB Height 11.5" (293mm)
G. Stand Over 22.1" (562mm)
