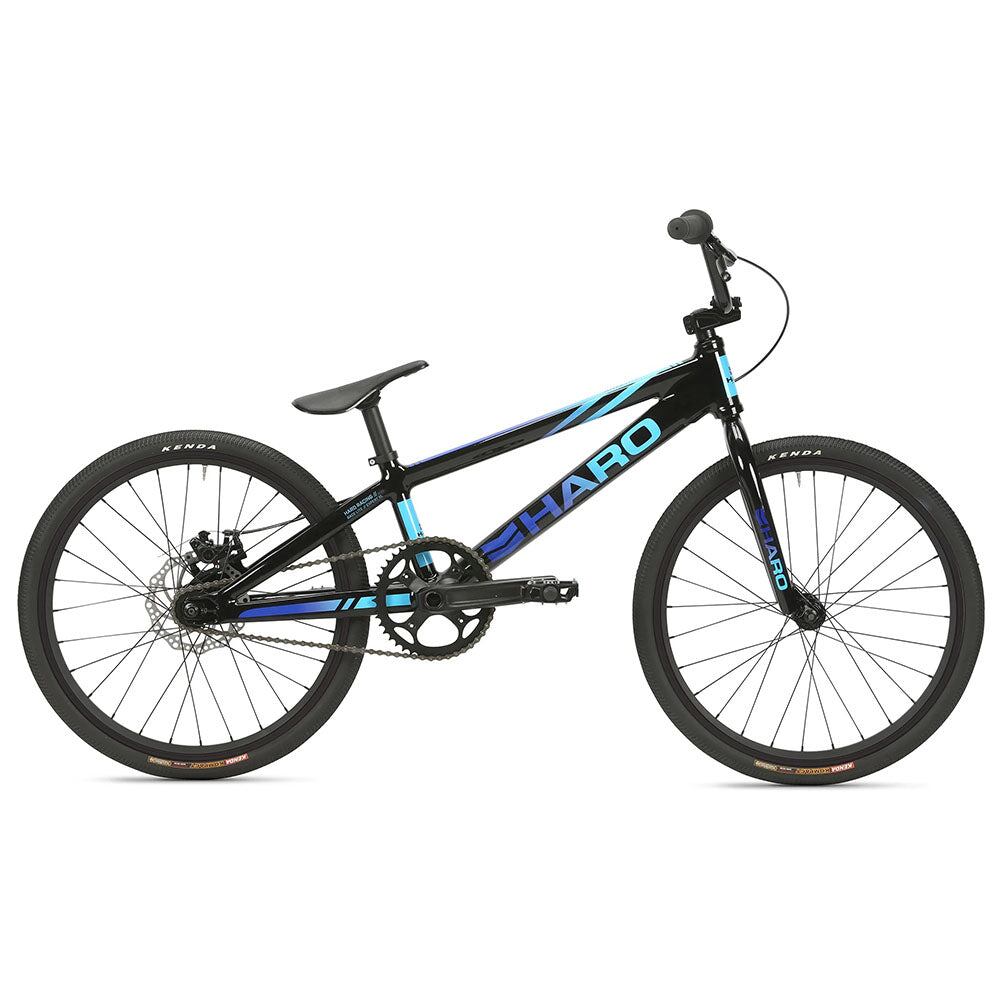

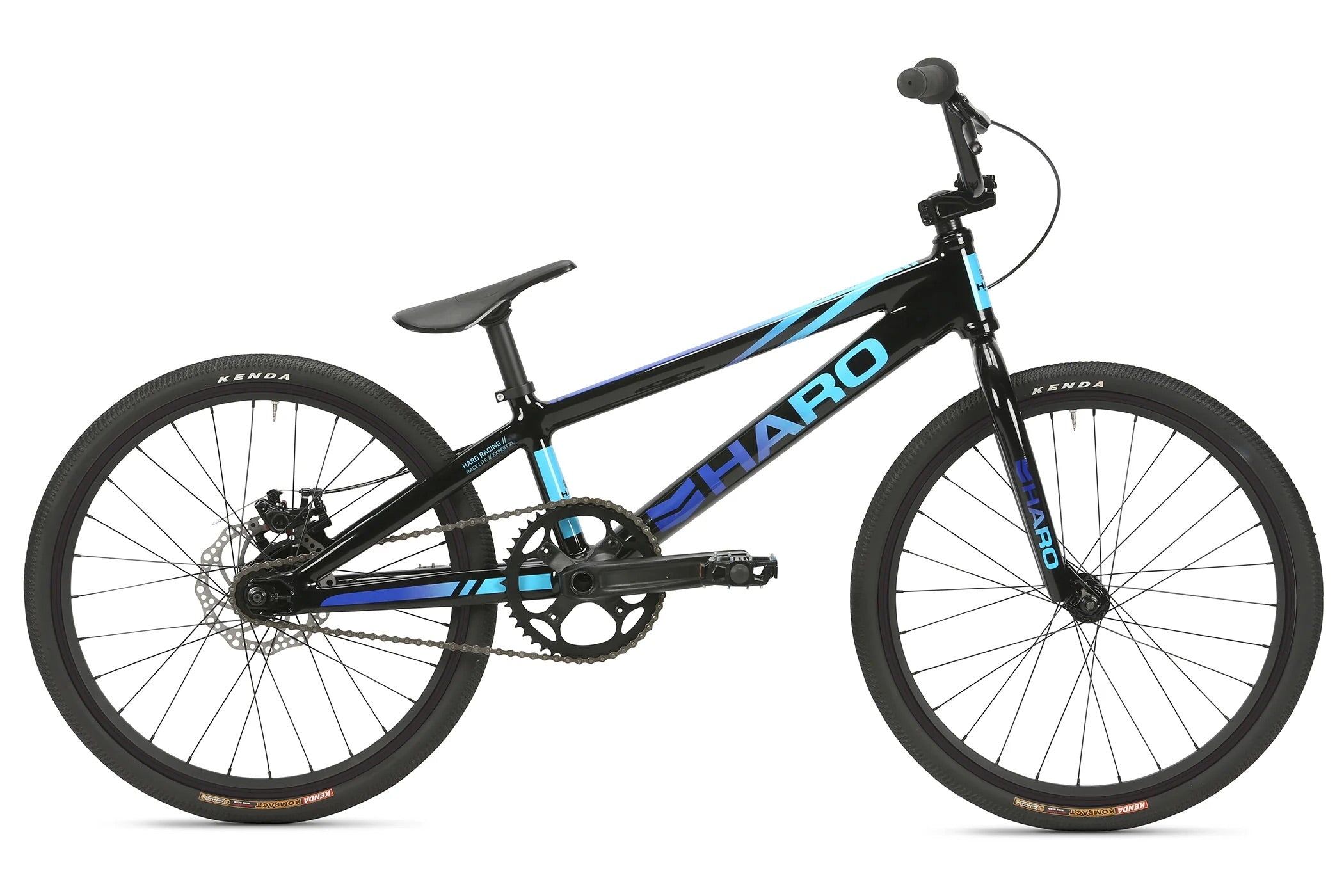

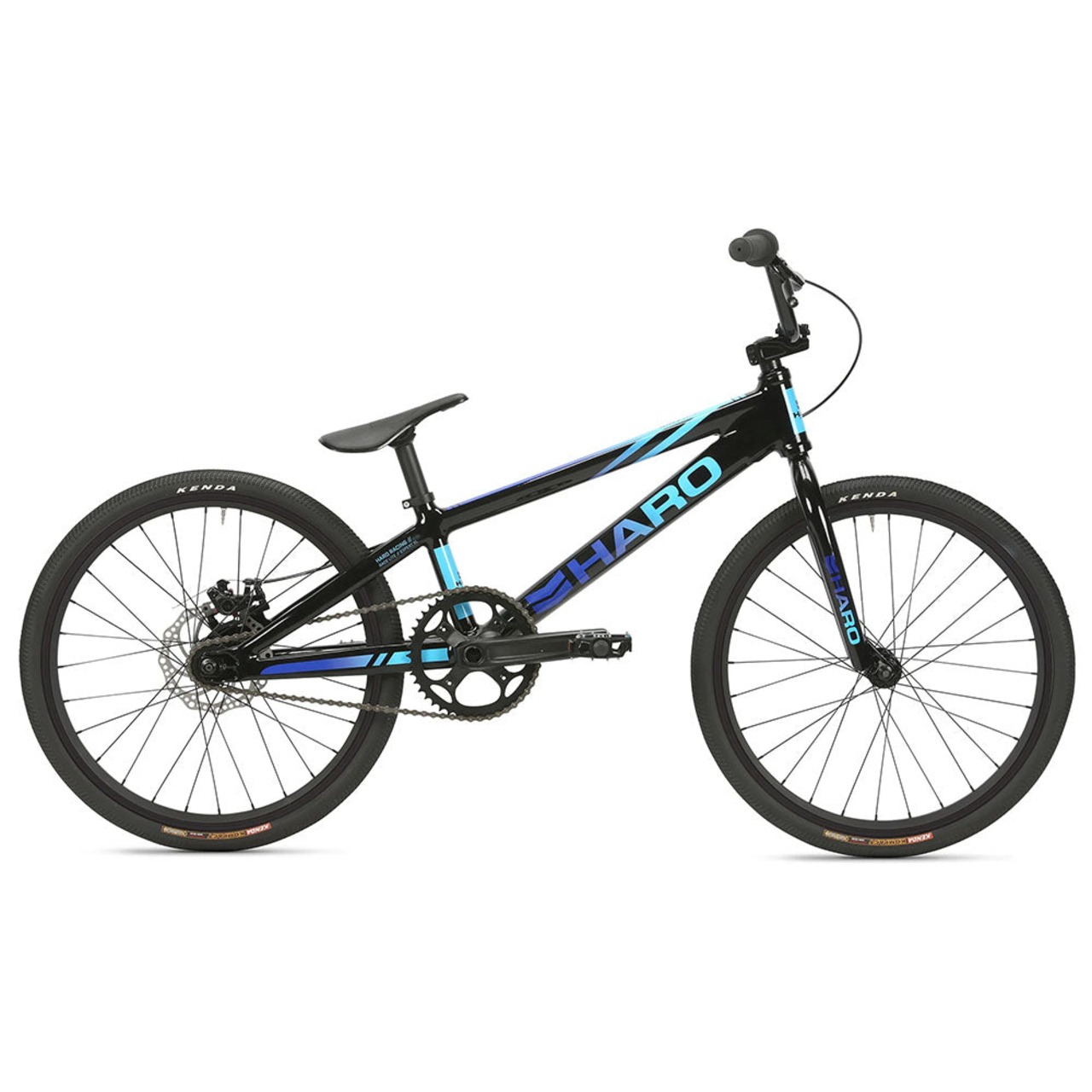

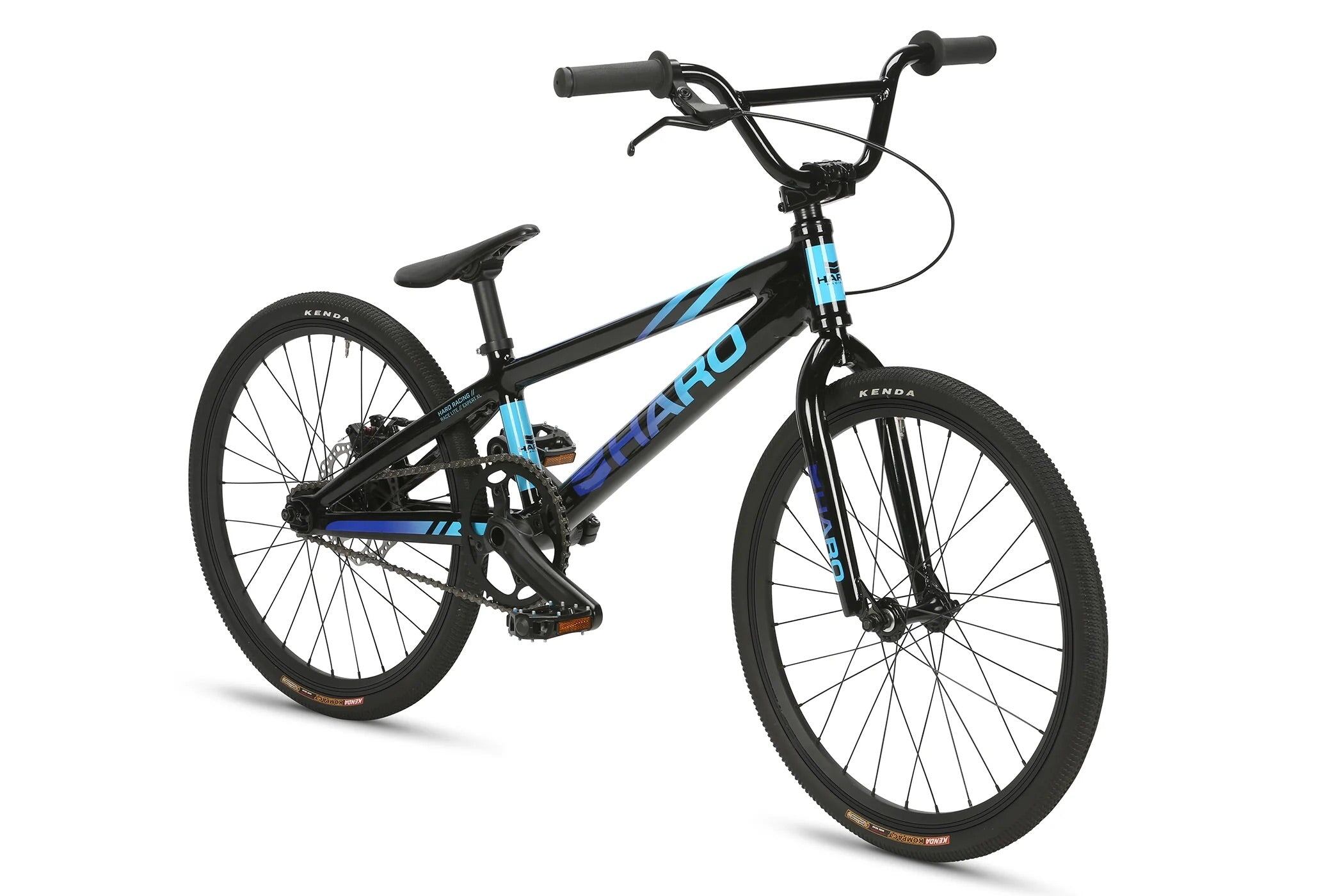

HARO RACE LITE PRO EXPERT XL

JPY83,600(USD523.49)

SOLD OUT

お取り寄せ可能な商品です。
ご購入・在庫の確認に関しましてはお問い合わせください。
?
?
Almost there. Just short of full-sized, the Haro Race Lite Expert XL features a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tires of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tire for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.
?
Features
・6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 20" top tube.
・Full chromoly 1" with threadless steerer tube
・2-pc Forged Alloy 165mm crank w/ 24mm hollow spindle. 38T chainring.
・20" Alloy 36h double wall rims
・36h alloy sealed bearing hubs w/disc 15T cassette rear
・Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
?
?

FRAMESET

Frame

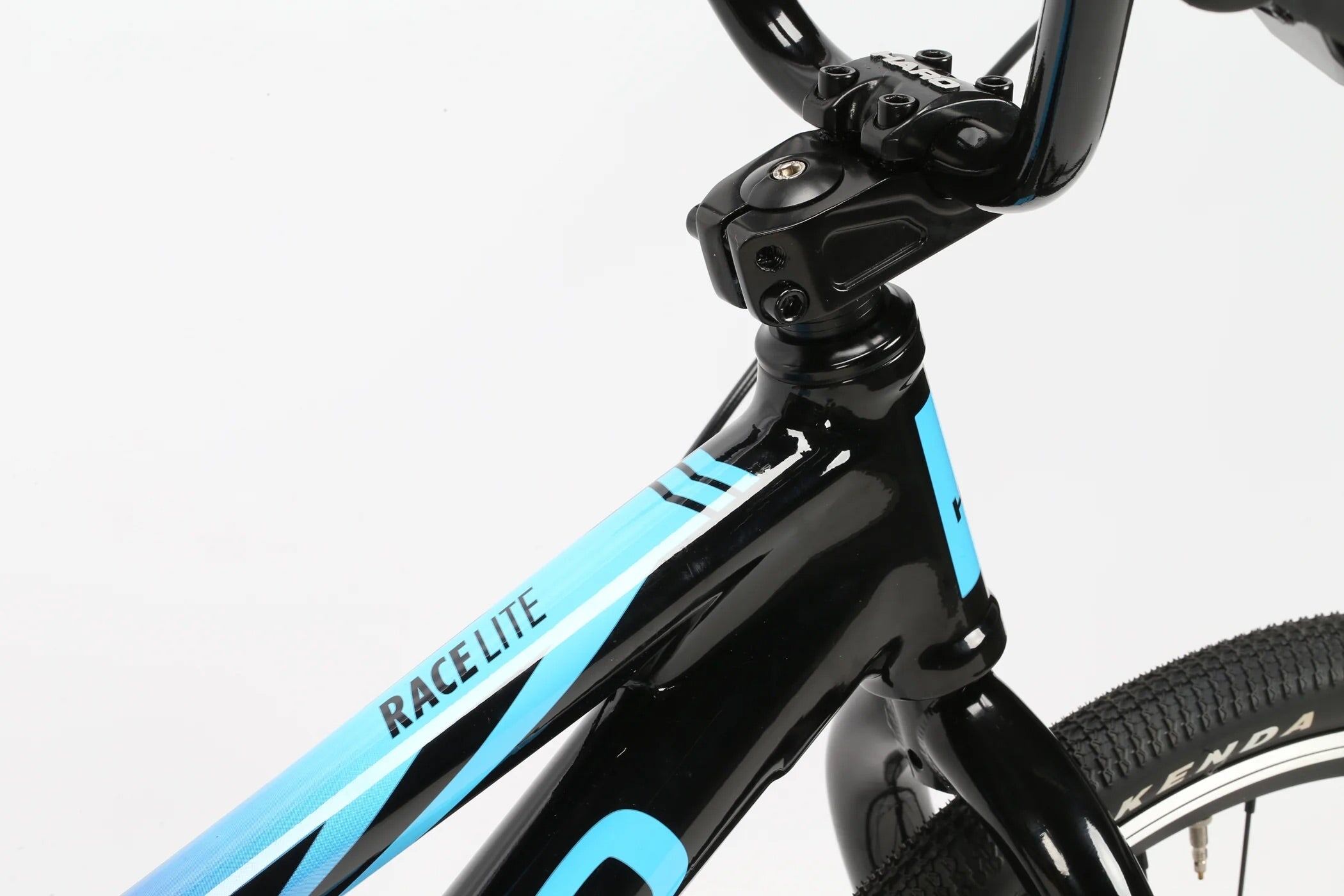

6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners

Fork

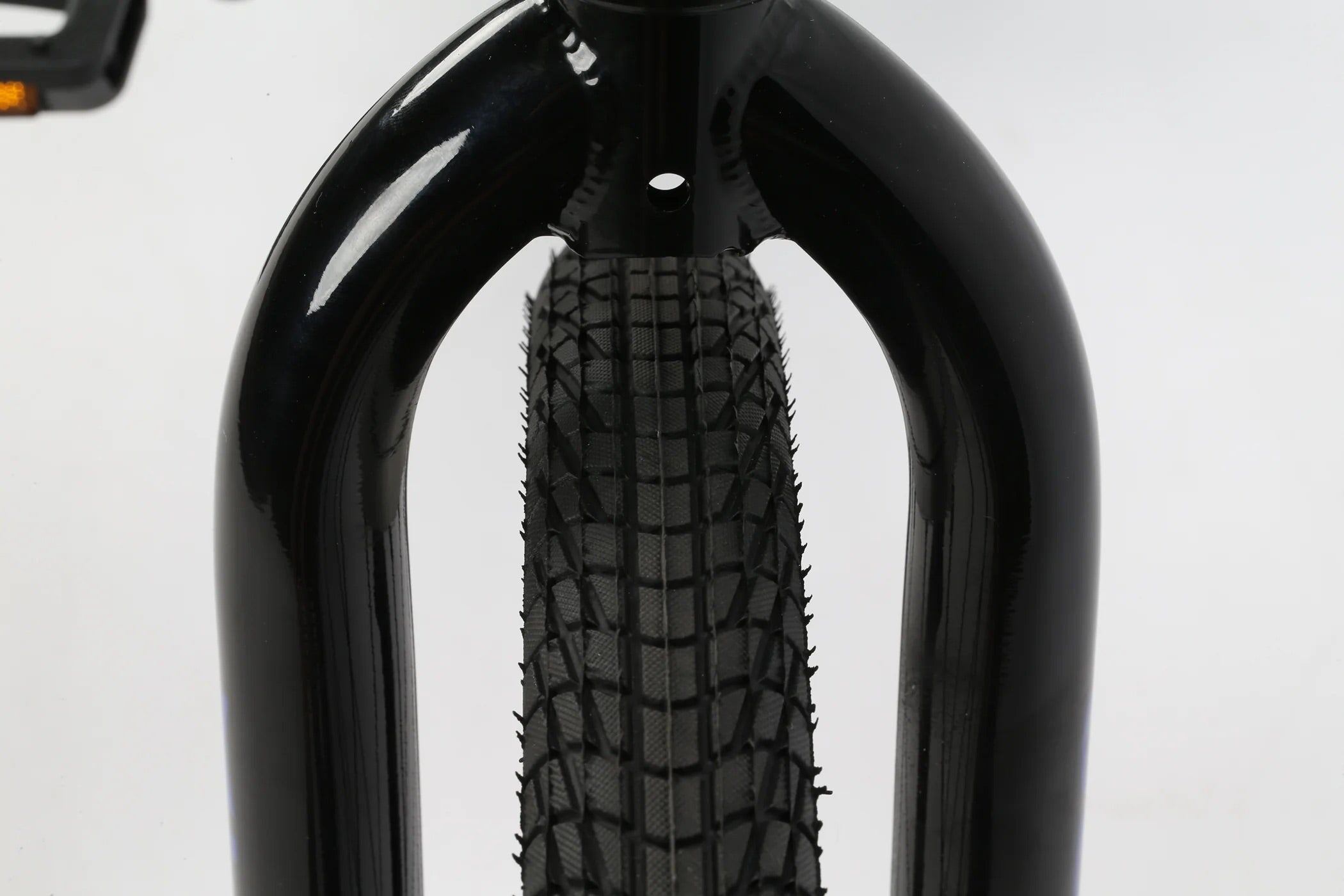

Full chromoly 1 1/8" Threadless Steerer w/tapered legs

Colors
Black

DRIVETRAIN

Cranks
2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm

Bottom Bracket
Press-Fit BB86, Sealed Bearing

Sprocket
38t Alloy Chainring

Gearing
38/15

Pedals
Alloy DX, 9/16"

Chain
KMC Z33 1/2 X 3/32"

Cassette
15t Cassette

WHEELS

Tires
Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear

Front Hub
36h Alloy Sealed-Bearing

Rear Hub
36h Alloy Sealed-Bearing w/ Disc Cassette Rear

Rims
20" Alloy 36h, Double Wall

BRAKING SYSTEM

Brake
Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor

Brake Lever
Promax XL-373 Two Finger

OTHER COMPONENTS

Grips
Micro-Knurl Grip

Handlebar

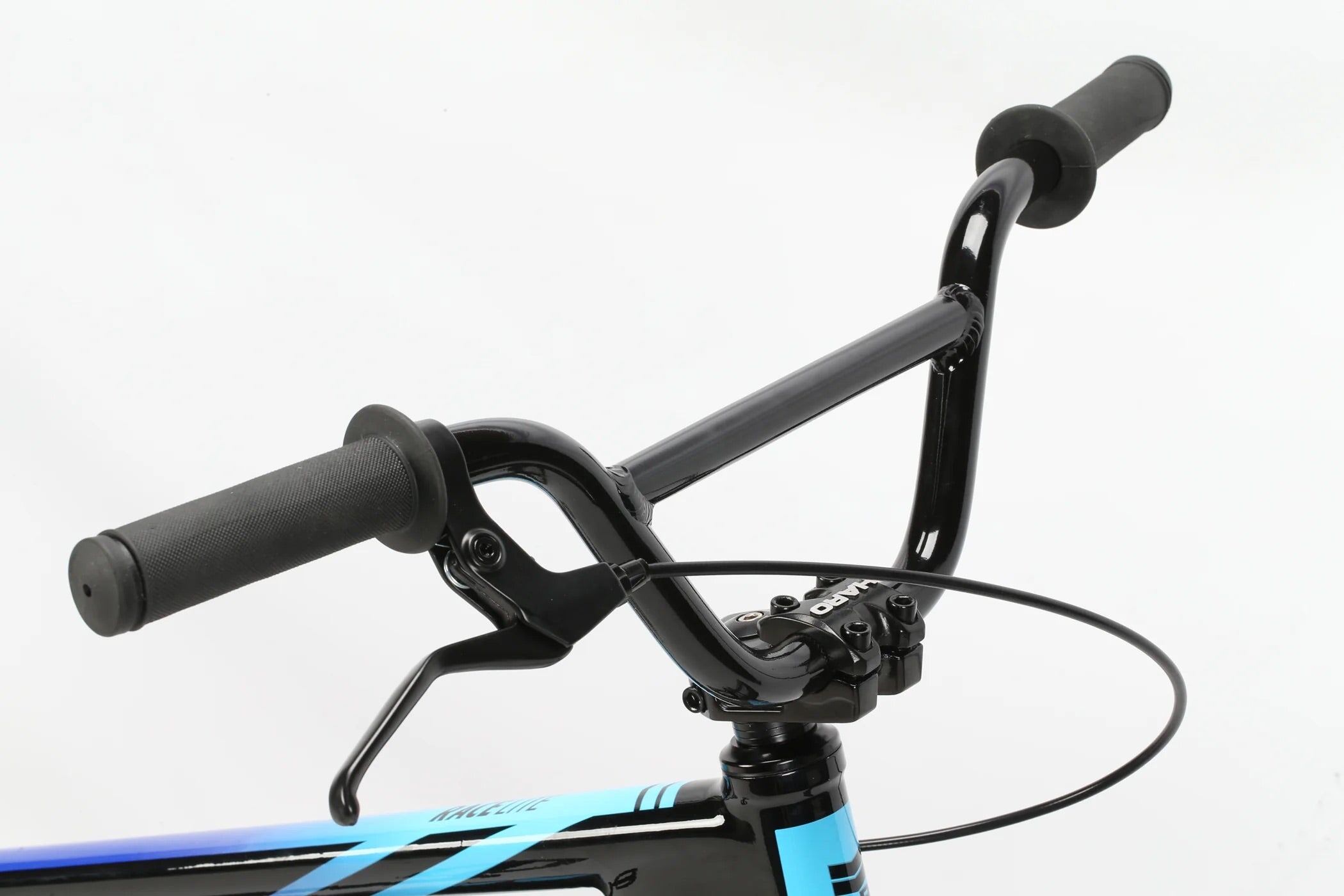

Haro Mini Alloy Bar, 6.5" Rise

Stem
Forged Alloy Top-Load, 45mm Ext.

Headset
1-1/8" Sealed Threadless

Seat
Haro Slim Plastic Pivotal

Seat Post
Alloy Pivotal, 27.2mm

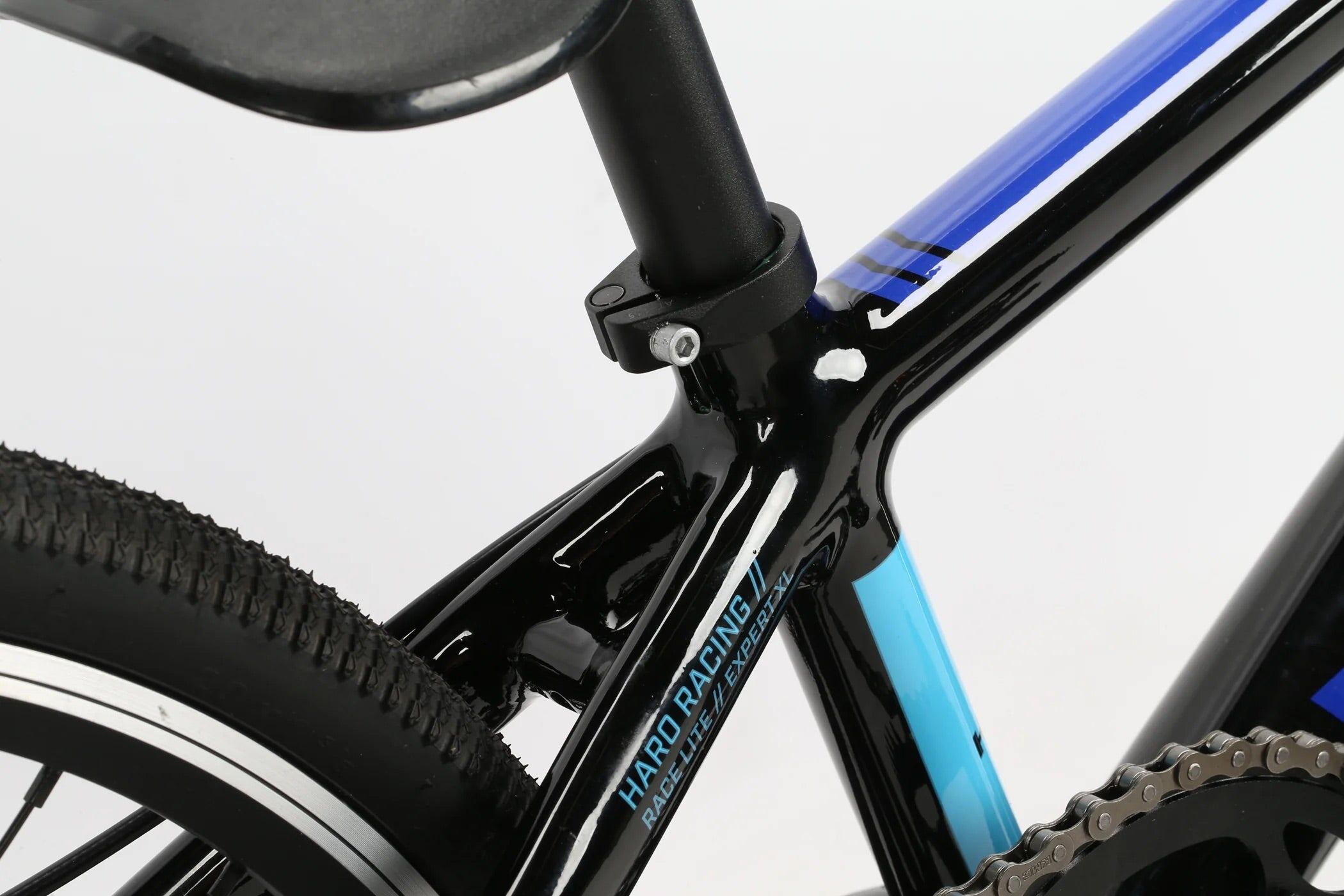

Seat Post Clamp
Alloy, 31.8mm

?
?

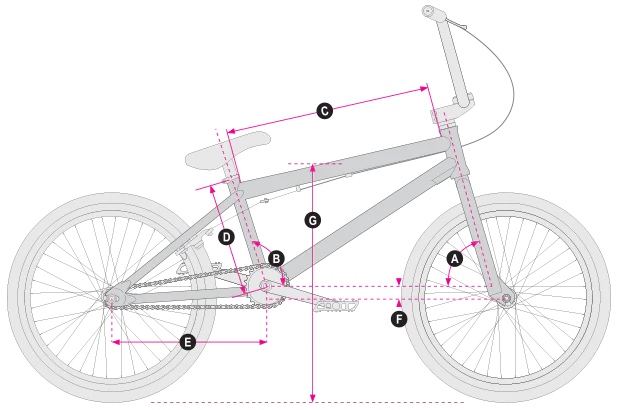

Size 20
A. Head Angle 73°
B. Seat Angle 70°
C. Top Tube 20" (507mm)?
D. Seat Tube 8.8" (224mm)
E. Chainstay 13.9" (352mm)
F. BB Height 11" (280mm)
G. Stand Over 19.5 (495.3mm)
