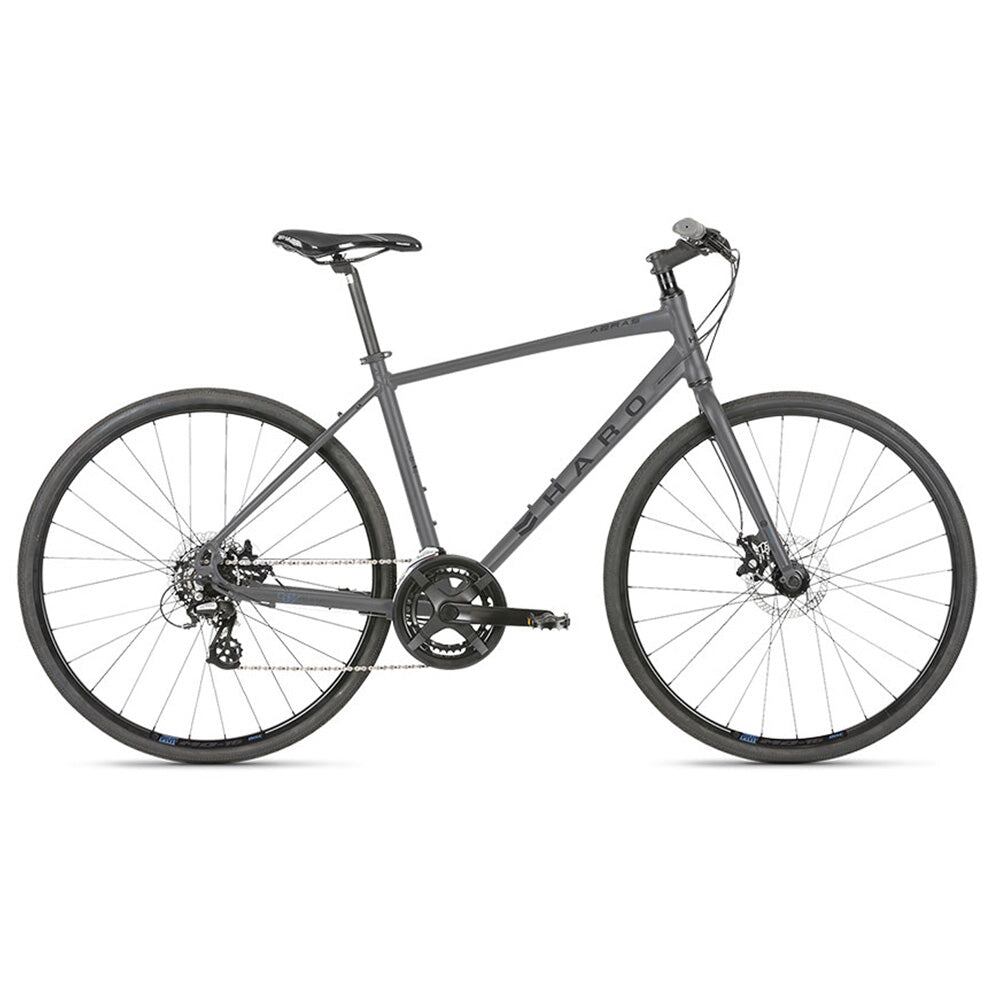

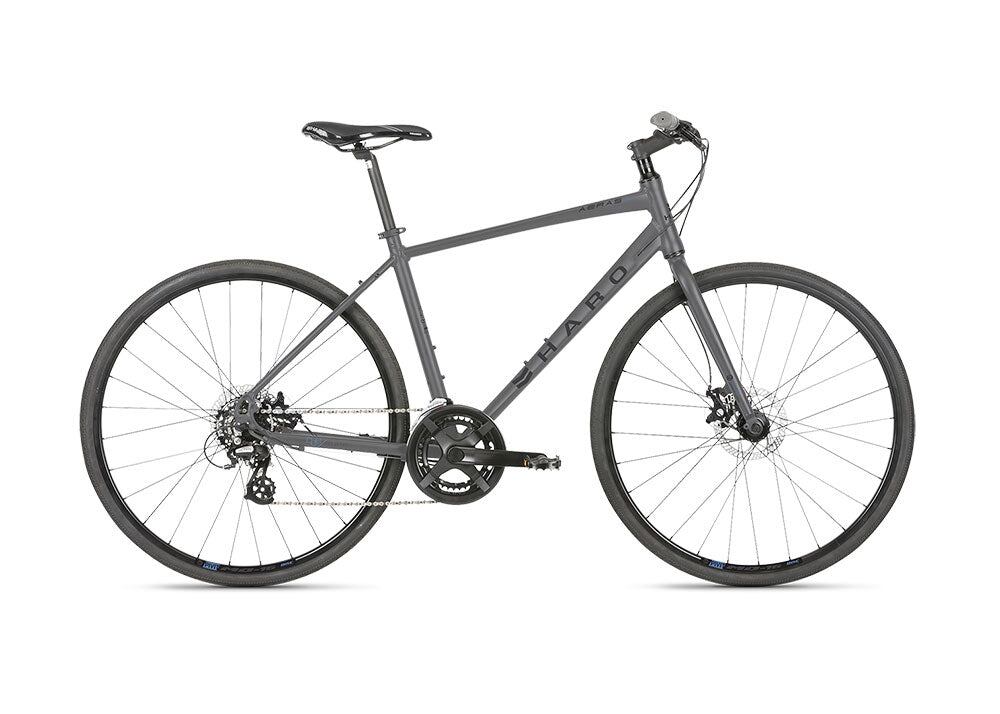

HARO AERAS
¥71,500
SOLD OUT
HARO BIKES が作る王道のクロスバイク。
そんな一台でもHARO BIKES らしさを忘れず、ブレーキは機械式ディスクブレーキを採用。
タイヤも700×32Cと太めのものを使用しています。
?
SPEC
FRAME
HARO VENTUS | HEAT-TREATED 6061 ALUMINUM | TIG-WELDED CONSTRUCTION | RIDER-TUNED GEOMETRY | 68MM THREADED BSA BOTTOM BRACKET SHELL | FLAT-MOUNT DISC BRAKE MOUNT | FORGED 135MM QUICK-RELEASE DROPOUTS WITH REPLACEABLE DERAILLEUR HANGER
FORK
HARO VENTUS | CLASSIC STEEL | FLAT MOUNT DISC | 100MM QUICK-RELEASE SPACING
COLORS
Matte Charcoal
WEIGHT
28 lbs
CRANKS
Shimano TY-501 | 46/30T | 8-speed | 15.5″ & 17.5″: 170mm
PEDALS
VP | 990S | Nylon body with steel cages | Chromoly axles
CHAIN
KMC Z8.1 | 8-speed
BOTTOM BRACKET
Shimano UN101 | Threaded BSA 68mm BB shell | 122.5mm spindle (LL123) | Sealed cartridge
FRONT DERAILLEUR
Shimano Tourney FD-TY710 | Top Swing | 34.9mm band diameter
REAR DERAILLEUR
Shimano Altus RD-M310-L | 8-speed | Direct attachment
DERAILLEUR SHIFTER
Shimano SL-M315 | 2 x 8-speed Rapidfire Plus | Optical gear display
FREEWHEEL/
CASSETTE??
Mid-range | 8-speed | 11-34T
TIRES
Kestrel 700 x 32c All Weather tires
WHEELS/
RIMS
Pivit Excelsior 700c | Width (internal): 19mm | 28h | Alloy double wall | disc-brake specifc
BRAKES
Tektro MD-M280 Mechanical Disc Post-Mount | 160mm Rotors
BRAKE LEVERS
Alloy | 3-finger
GRIPS/TAPE
Pivit Entonces | Dual-density durometer | Active tuned
HANDLEBAR
Pivit Commander Bar | Alloy | 31.8mm | 9° backsweep | 620mm width
STEM
Pivit Maverick Stem | Alloy | Positive Positioning | 7° rise | 15″: 70mm; 17.5″ & 19″: 90mm
HEADSET
Pivit Precision Plus | 1-1/8″ threadless | Internal | For 50mm OD headtube
SADDLE
Haro Rep Plus | Dual-sport tuned padding | Weather-resistant cover
SEAT POST
Pivit Fixed Address | Alloy | Micro-adjust positioning | 27.2mm x 350mm | Zero-offset efficiency | 2-bolt simplicity
SEAT CLAMP
Pivit Lockjaw | Alloy | 31.8mm | Multi-throw design | Quick-release ease
EXTRAS
Rack and fender mounts
?
?

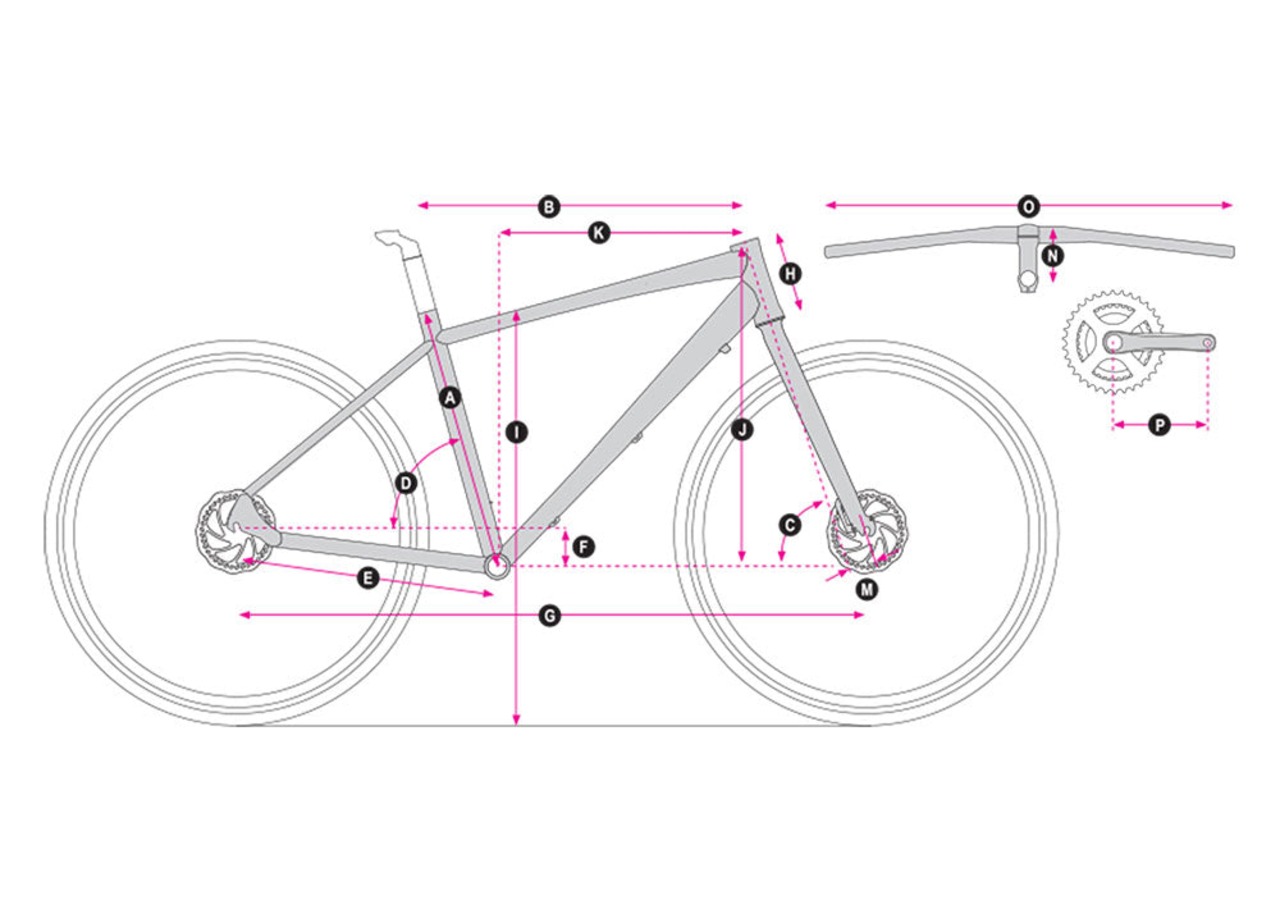

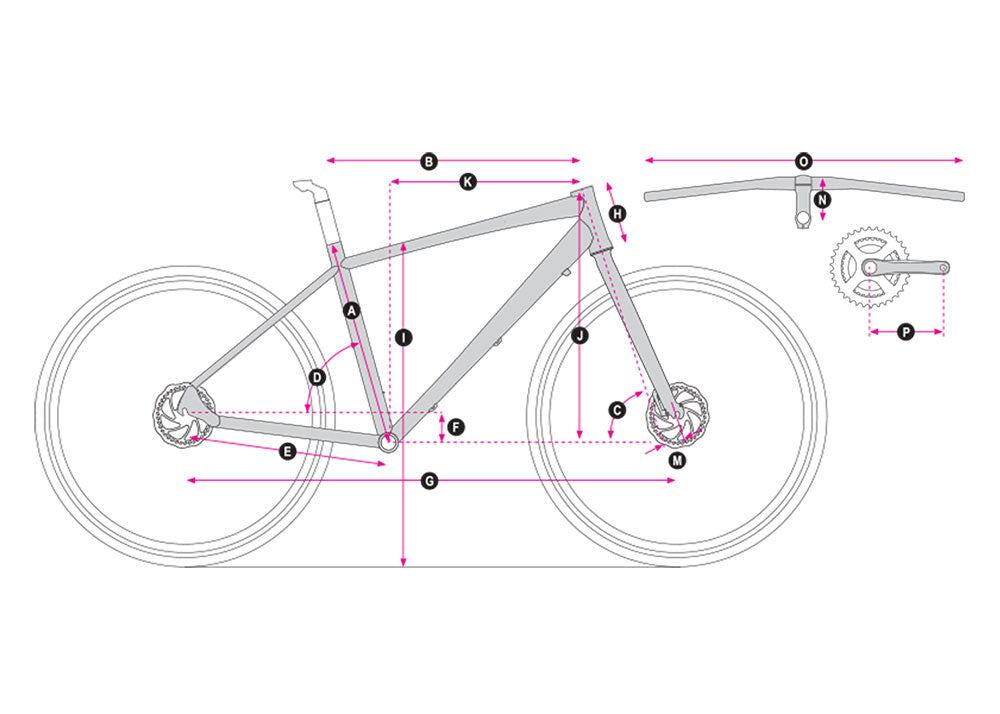

Size
S / 15.5″
M / 17.5″
A. Seat Tube (C-T)
394mm (15.5″)
445mm (17.5″)
B. Top Tube (Effective)
555mm (21.9″)
570mm (22.4″)
C. Head Tube Angle
70.5°
70.5°
D. Seat Tube Angle
73.5°
73.5°
E. Chainstay Length
445mm (17.5″)
445mm (17.5″)
F. BB Drop
60mm (2.4″)
60mm (2.4″)
G. Wheel Base
1053mm (41.5″)
1069mm (42.1″)
H. Head Tube Length
120mm (4.7″)
140mm (5.5″)
I. Standover
719mm (28.3″)
748mm (29.4″)
J. Stack Height
537mm (21.1″)
555mm (21.9″)
K. Reach
396mm (15.6″)
405mm (15.9″)
L. Fork Height
401mm (15.8″)
401mm (15.8″)
M. Fork Offset
45mm (1.8″)
45mm (1.8″)
N. Stem Length
70mm
90mm
O.Handlebar Width
620mm
620mm
P. Crank Length
170mm
170mm
